| Place of Origin: | China |
|---|---|
| Brand Name: | AISRY |
| Certification: | ISO |
| Model Number: | ASR-MFY-01 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Vacuum Degree Range: | —90~0kpa | Vancuum Precision: | 0.1kpa |
|---|---|---|---|
| Resoultion: | 0.1kpa | Vancuum Chamber Size: | Φ270mm*200mm |
| Original Air Pressure: | 0.7mpa(owned) | Control Method: | Microcomputer Control, Antomatic Test Procedure |
| Power Supply: | AC220V±10%,50HZ | Gross Weight: | 24kg |
| High Light: | 0.1kpa Vacuum Leak Tester,GB/T 15171 Vacuum Leak Tester,ASTM D3078 Bottle Leak Tester |
||

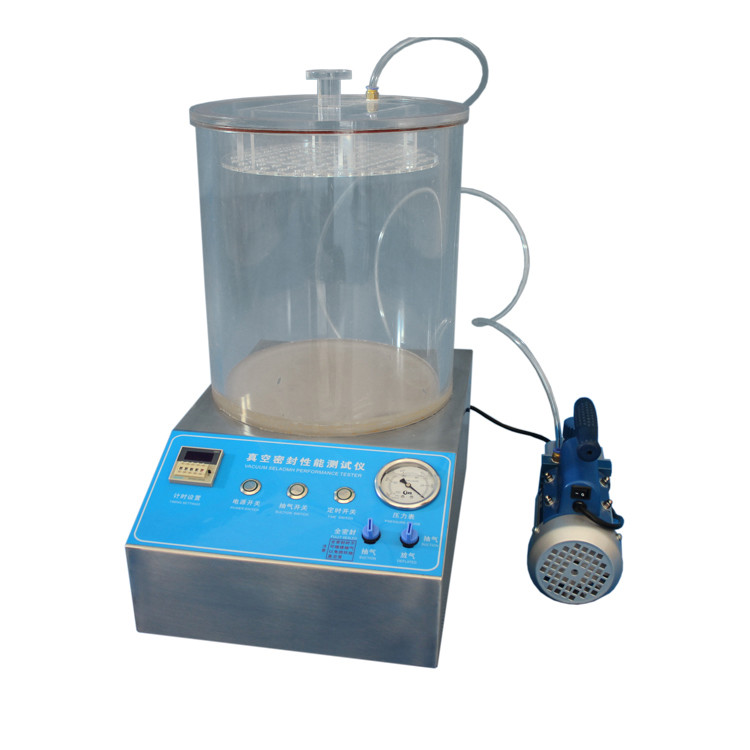

Vacuum Air Leak Tester For Package Sealed PET PP Bottle Leak Tester
Application :
This machine use compression air to produce negative pressure by vacuum device to test the seal capability and processing technique of soft plastic packaging material.
It has advantages of easy operation, novel design, convenient to observe test result, especially to detect some tiny pole leak.
It is applicable in testing the seal of soft packaging in food and pharmaceutical industry, etc. It can test the seal capability of soft packaging accurately, which provides scientific date for relative technical requirement. It also can test the specimen which has done drop and compression test.
Standard:
GB/T 15171, ASTM D3078 -1994,
Parameter:
| Model | ASR-MFY-01 |
| Vacuum degree range | —90~0kpa |
| Vancuum precision | 0.1kpa |
| Resoultion | 0.1kpa |
| Vancuum chamber size | Φ270mm*200mm other size can be customized |
| Original air pressure | 0.7mpa(owned) |
| Control method | Microcomputer control, antomatic test procedure |
| Dimensions | Host:320*420*120mm,Sealed vacuum barrels:Φ300*3.5mm |
| Environmental conditions | Room temperature(20±10)℃,relatice humidity<85% |
| Power supply | AC220V±10%,50HZ |
| Package Size | 460*360*530mm |
| Net weight | 15kg |
| Gross weight | 24kg |
