50kN Force Vibration Shaker with 600x600mm Table for Sine & Random Vibration Testing

50kN Force Vibration Shaker with 600x600mm Table for Sine & Random Vibration Testing

Brand Name: PRECISION
Model Number: VTS-50
MOQ: 1
Price: $6000
Payment Terms: T/T
Supply Ability: 100/month
Detail Information
Place of Origin:
CHINA
Certification:
CE ISO
Customized Support:
OEM ODM
Sine Force:
50kN
Random Force:
50kN
Shock Force:
100kN
Frequency Range:
1-3000Hz
Displacement:
100mm
Velocity:
2.0
Table Size:
600x600mm
Packaging Details:
Standard export packaging
Supply Ability:
100/month
Highlight:

50kN Force Vibration Shaker

,

600x600mm Table Vibration Shaker

,

Sine & Random Vibration Testing Machine

Product Description

Sine & Random 50kN Vibration Shaker with 600x600mm Vertical and Horizontal Table



Our Sine & Random 50kN Vibration Shaker is a high-performance, compact system designed for versatile and precise product validation. Delivering a powerful 50 kN (5,000 kgf) of force and featuring an optimized 600mm x 600mm testing platform for both vertical and horizontal applications, this system is the ideal solution for engineers needing substantial force and multi-axis testing capability in a space-efficient package. It is the perfect tool for validating medium to large components across the automotive, electronics, and general industrial sectors.



Key Features



  • High-Force 50 kN Output: Provides the necessary force for rigorously testing medium-to-heavy components, ensuring accurate, full-force compliance with international and OEM testing standards.

  • Dual-Mode Vibration Testing: The system is capable of generating both high-precision sine vibration for quick resonance searches and fatigue analysis, and complex random vibration for simulating wide-band, real-world operational environments.

  • Optimized 600mm x 600mm Platform: The compact yet ample size of the armature (for vertical testing) and the integrated horizontal slip table (for X and Y-axis testing) efficiently accommodates a wide range of components and assemblies.

  • Three-Axis Vibration Capability: This integrated system allows you to perform tests in the vertical (Z-axis) on the shaker and the horizontal (X and Y-axes) on the slip table. This is crucial for accurately replicating the complex, multi-directional dynamic loads of real-world use.

  • Precision Electrodynamic Shaker: Our high-performance shaker provides accurate, repeatable, and controlled generation of all complex vibration profiles, ensuring high fidelity across the entire test platform.

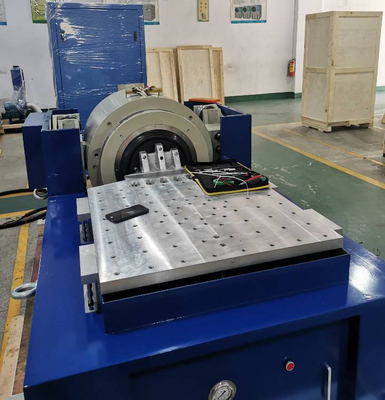

  • Robust Horizontal Slip Table: The integrated oil-film slip table is built for stability and rigidity, effectively handling overturning moments common during multi-axis testing, even with eccentric payloads.

  • User-Friendly Control System: Comes with intuitive software that simplifies test programming, execution, and data reporting, maximizing lab efficiency.



Applications



  • Automotive: Multi-axis durability testing of battery modules, electronic control units (ECUs), sensors, and interior components.

  • Electronics & Telecom: Validation of server equipment, network devices, and electronic enclosures against multi-directional dynamic stresses.

  • Aerospace Components: Qualification of smaller avionics units and structural sub-assemblies for multi-axis flight vibrations.

  • Packaging Testing: Rigorous validation of medium-sized packaged products against multi-directional transit stresses.

  • Research & Development: Versatile platform for structural dynamics analysis and fatigue testing of new product prototypes.



Benefits



  • Unrivaled Versatility: The combination of sine/random capability, high force, and three-axis testing on a compact platform meets diverse testing needs with a single machine.

  • Space & Cost Efficient: Provides premium testing capability in a smaller footprint, offering exceptional value and maximizing laboratory space.

  • Superior Durability Validation: Rigorously tests products under realistic, multi-axis dynamic loads, leading to fewer field failures and enhanced product reliability.

  • Accelerated Testing: The multi-axis capability streamlines the validation process, helping you get products to market faster.

Specifications



Rated Sine/ Random/ Shock Force 5,000 kgf/5,000kgf/10.000 kgf Armature Mass 8 kg
Rated Sine/ Random/ Shock Force 5-2,500 Hz Inserts Size (Standard) M10
Frequency Range 100mm/90mm Load Attachment Points (Standard) 17
Max / Continuous Displacement p-p 1.8mm Natural Frequency -Thrust Axis <3Hz
Max. Velocity 83/60g Max. Vertical Load Support 500 kg
Max.Sine/ Random Acceleration 440 mm Stray field @152 mm above table ≤lmT (10 gauss)
Armature Diameter 2,100 Hz (nom.) ±5% Dimension LxWxH 1,650 mmx 1,130mmx 1,28(him
Fundamental Resonance Frequency 1,000 Nm Weight (Uncrated) 4,500 kg

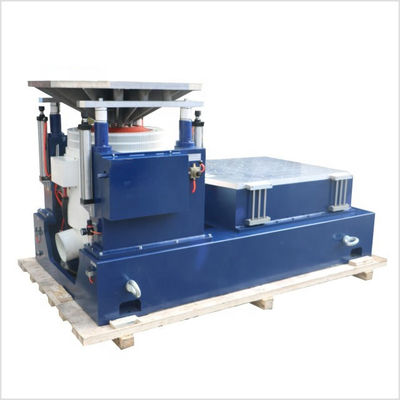

50kN Force Vibration Shaker with 600x600mm Table for Sine & Random Vibration Testing 0

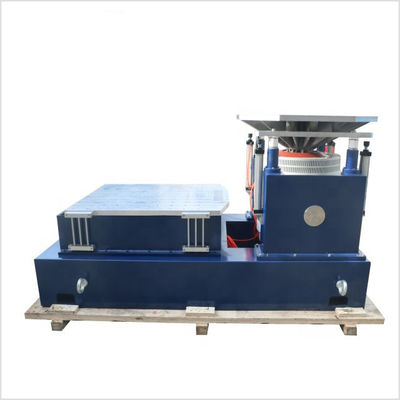

50kN Force Vibration Shaker with 600x600mm Table for Sine & Random Vibration Testing 1



eady to enhance your testing capabilities with a powerful, versatile, and compact system? Contact our experts today to discuss your requirements for the Sine & Random 50kN Vibration Shaker with 600x600mm Vertical and Horizontal Table.
