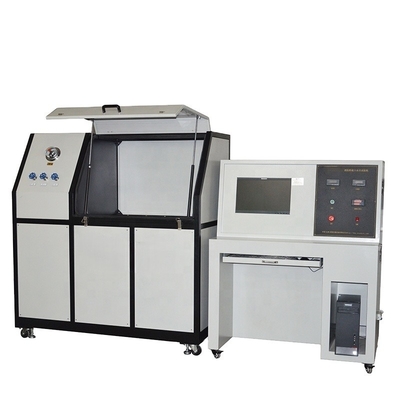

Customized Flammability Test Instruments Pioneering Fire Safety Analysis

1. Product Name and Purpose

2. Product Features

• Robust and Heat-Resistant Build Quality

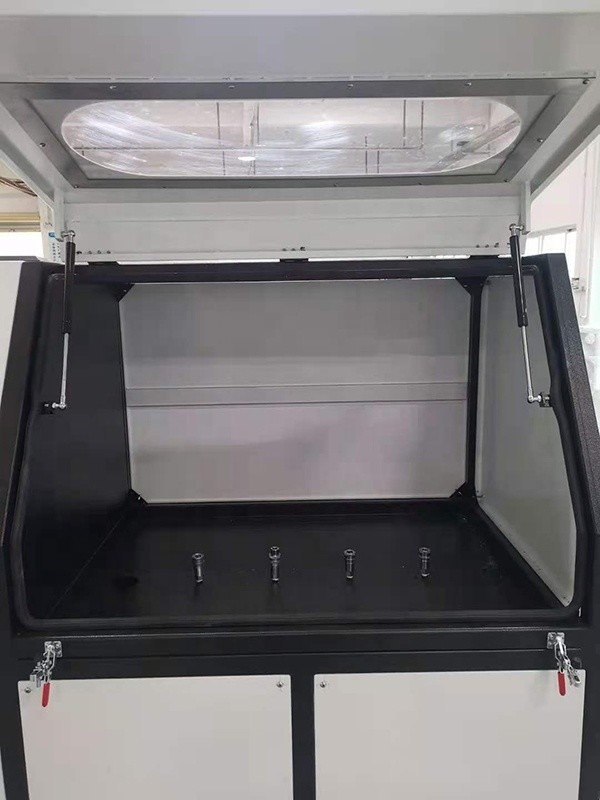

  • These instruments are constructed with high-strength, heat-resistant materials. The frames are typically made of alloy steel or stainless steel, which can endure the extreme temperatures and mechanical stresses associated with flammability testing. The interior chambers are lined with refractory ceramics or high-temperature insulation materials, capable of withstanding temperatures up to 1800°C. The doors and access panels are engineered with precision seals and locking mechanisms to ensure a tight and secure enclosure during testing. A viewing window, made of heat-strengthened glass or a specialized ceramic material, allows for visual monitoring of the test without compromising the integrity of the test environment.
• Precision Temperature and Flame Control Systems
  • Temperature Control: The instruments can precisely regulate the temperature within a wide range, from ambient to 1500°C, with an accuracy of ±3°C. They utilize advanced heating elements, such as silicon carbide or molybdenum disilicide heaters, combined with a sophisticated PID (Proportional-Integral-Derivative) control algorithm. Multiple thermocouples are strategically placed throughout the chamber to ensure uniform temperature distribution and rapid response to any temperature deviations. The control panel allows for the programming of complex temperature profiles, including ramping, holding, and cycling, to mimic various real-world fire scenarios.
  • Flame Control: To accurately simulate the heat transfer during a fire, the instruments can adjust the flame characteristics. They can generate flames with different intensities, from a gentle pilot flame to a powerful, turbulent flame. The fuel supply and air mixture can be precisely regulated, allowing for the customization of flame temperature, shape, and color. This is essential for testing the response of materials under different fire conditions, such as the slow-burning flames of a smoldering fire or the intense heat of a flashover.
• Advanced Instrumentation and Data Acquisition Capabilities
  • The Customized Flammability Test Instruments are equipped with a comprehensive array of sensors and measurement devices. In addition to temperature and flame sensors, they include optical sensors for monitoring flame height, luminosity, and color. Smoke density sensors, based on light attenuation principles, accurately measure the amount and density of smoke produced. Gas sensors, capable of detecting a wide range of toxic and combustible gases, provide valuable information about the chemical composition of the gases emitted. These sensors are connected to a high-speed data acquisition system that records and stores all relevant data. The data acquisition system offers a sampling rate of up to 6000 samples per second, ensuring that even the most transient and minute changes in parameters are captured. The collected data can be analyzed in real-time or retrieved later for in-depth studies using specialized software, which provides detailed reports and graphical representations.
• Versatile Testing Modes and Configurations
  • The instruments offer a variety of testing modes to accommodate different sample types and testing requirements. They can perform horizontal and vertical flame spread tests, cone calorimeter tests, and fire resistance tests. In horizontal flame spread tests, the behavior of a material's surface as the flame travels across it is evaluated. Cone calorimeter tests measure the heat release rate and other combustion parameters of a sample under a controlled radiant heat flux. Fire resistance tests assess the ability of a structure or component to withstand fire for a specific period without losing its integrity. The instruments can also be configured to test the effectiveness of fire suppression systems, such as sprinklers or fire extinguishers, by simulating a fire and observing the system's response.
• Compliance with Stringent Industry Standards
  • The Customized Flammability Test Instruments are designed to comply with a wide range of international and national fire safety standards. They adhere to ASTM (American Society for Testing and Materials) standards, such as ASTM E84 for surface burning characteristics, ASTM E1354 for heat and visible smoke release rates, and ASTM E662 for smoke density. They also meet ISO (International Organization for Standardization) standards, including ISO 5660 for reaction-to-fire tests and ISO 1716 for calorific value determination. This compliance ensures that the test results are recognized and accepted by regulatory bodies and industry peers, facilitating product certification and market access.

3. Specific Parameters

• Chamber Size and Capacity
  • The instruments are available in different chamber sizes to suit various sample sizes and testing volumes. Smaller chambers may have interior dimensions of 0.4 meters x 0.4 meters x 0.4 meters, suitable for testing small specimens or individual components. Medium-sized chambers can measure 0.8 meters x 0.8 meters x 0.8 meters, providing sufficient space for testing larger samples or a batch of products. Larger chambers, with dimensions exceeding 1.5 meters x 1.5 meters x 1.5 meters, are ideal for full-scale testing of building structures or large industrial equipment. The interior volume and shape are carefully designed to ensure proper air circulation and uniform exposure of the sample to the fire and environmental conditions.
• Temperature Range and Accuracy
  • As mentioned earlier, the temperature can be controlled from ambient to 1500°C, with an accuracy of ±3°C. The temperature ramp rate can be adjusted from 1°C per minute to 80°C per minute, allowing for the simulation of different fire growth rates. For example, a slow ramp rate can be used to study the thermal degradation of a material over time, while a rapid ramp rate can mimic the sudden increase in temperature during a flashover event.
• Flame Intensity and Control Parameters
  • The flame intensity can be adjusted over a wide range, with a maximum heat output equivalent to several megawatts per square meter. The fuel flow rate can be varied from a few milliliters per minute to several liters per minute, and the air-fuel ratio can be precisely controlled within a range of 1:1 to 18:1. These parameters enable the creation of flames with different characteristics, from a small, stable flame for precision testing to a large, turbulent flame for more severe fire simulations.
• Data Acquisition Rate and Resolution
  • The data acquisition system samples sensor data at a rate of 6000 samples per second. The temperature sensor has a resolution of 0.1°C, the smoke density sensor can detect changes as small as 0.01% opacity, and the gas sensors have a sensitivity in the parts per million (ppm) range for most common gases. This high-resolution data capture provides detailed insights into the fire behavior of the tested samples.
• Compliance with Key Fire Testing Standards
  • The instruments comply with ASTM E84, ASTM E1354, ASTM E662, ISO 5660, and ISO 1716, among other relevant standards. They can also be customized to meet specific requirements of other industry standards or regulatory codes, ensuring their adaptability to different applications.

4. Product Functions

• Accurate Simulation of Fire Scenarios
  • The primary function of the instruments is to provide a highly accurate and realistic simulation of fire conditions. By precisely controlling temperature, flame characteristics, and other factors, it allows for the comprehensive evaluation of how materials and products will perform in an actual fire. For example, it can determine if a building material will contribute to the spread of fire, if a product will release toxic gases that could endanger occupants, or if a component will maintain its structural integrity under fire exposure. This information is invaluable for architects, engineers, and manufacturers to make informed decisions about fire safety in their designs and products.
• Enhanced Product Development and Quality Assurance
  • Through detailed flammability evaluation, manufacturers can identify and address potential fire safety issues in their products. If a material shows a high flame spread rate or excessive smoke production, they can modify the formulation or design to improve its fire resistance. This leads to the development of safer and more reliable products, reducing the risk of fire-related accidents and ensuring customer satisfaction. The instruments also serve as a crucial tool for quality control, ensuring that each batch of products meets the required fire safety standards.
• Support for Regulatory Compliance and Certification
  • Regulatory bodies rely on accurate fire test results to enforce fire safety regulations. The Customized Flammability Test Instruments enable manufacturers to conduct tests in accordance with recognized standards, providing the necessary data for regulatory compliance and product certification. This helps in building a safer built environment and promoting public safety.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The flammability test instruments are manufactured under strict quality control procedures. Each component, from the heating elements to the sensors and control panel, is carefully sourced and inspected for quality and performance. The assembly process is carried out by trained technicians in a clean and controlled environment. The instruments undergo a series of calibration and validation tests during the manufacturing process to ensure that they meet the required accuracy and performance standards.
  • The calibration of the temperature, flame, and other sensors is a critical part of the manufacturing process. It is performed using traceable reference standards that are calibrated to the highest levels of accuracy, guaranteeing the reproducibility of the test results. Rigorous quality audits and inspections are conducted at various stages of production to maintain the highest level of product quality and compliance with fire safety standards.
• Quality Certification and Validation
  Our instruments have obtained relevant quality certifications and has been validated by independent fire testing laboratories. It has been proven to provide accurate and reliable test results, conforming to the relevant industry standards. We also continuously update and improve our product based on the latest technological advancements and customer feedback from the fire safety industry to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Building Materials Testing
  • A leading building materials manufacturer used the Customized Flammability Test Instruments to test a new type of wall insulation material. The tests revealed that the material had a low heat release rate and minimal smoke production, making it a highly fire-safe option. This led to the successful marketing of the product as a superior alternative to traditional insulation materials, meeting the growing demand for energy-efficient and fire-resistant building products.
  • A construction company tested different types of roofing materials in the instruments. The testing identified that one particular roofing material had a high flame spread rate. By using a fire-retardant coating and retesting, they were able to improve the fire performance of the roofing material and ensure compliance with building codes.
• Manufacturing and Product Design
  • An electronics manufacturer tested the fire resistance of their new smartphone casing. The instruments helped them identify potential weak points in the casing's design, such as areas where the plastic could melt and release toxic gases. By redesigning the casing and using fire-resistant materials, they were able to enhance the fire safety of their product and protect consumers.
  • A furniture manufacturer evaluated the flammability of their upholstery fabrics. The tests showed that some fabrics had a poor fire resistance rating. By switching to fabrics with better fire-retardant properties and testing them again, they were able to improve the fire safety of their furniture and gain a competitive edge in the market.
• Research and Development
  • A research institution used the Customized Flammability Test Instruments to study the behavior of new composite materials under fire conditions. The detailed data obtained from the tests enabled them to develop a new generation of composite materials with improved fire resistance, which could be used in various industries, including aerospace and automotive.
  • Another research team investigated the effectiveness of different fire suppression agents. The instruments allowed them to simulate real-fire scenarios and evaluate the performance of the agents, leading to the development of more efficient fire suppression strategies.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of fire safety experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the Customized Flammability Test Instruments for their specific testing needs. We offer demonstrations and training, tailored to the fire safety industry, to familiarize customers with the operation and functionality of the instruments before purchase. We also assist in selecting the appropriate test methods and accessories based on the materials or products to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the test instruments operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the instruments for flammability testing.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Customized Flammability Test Instruments and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with fire safety standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in flammability testing.
