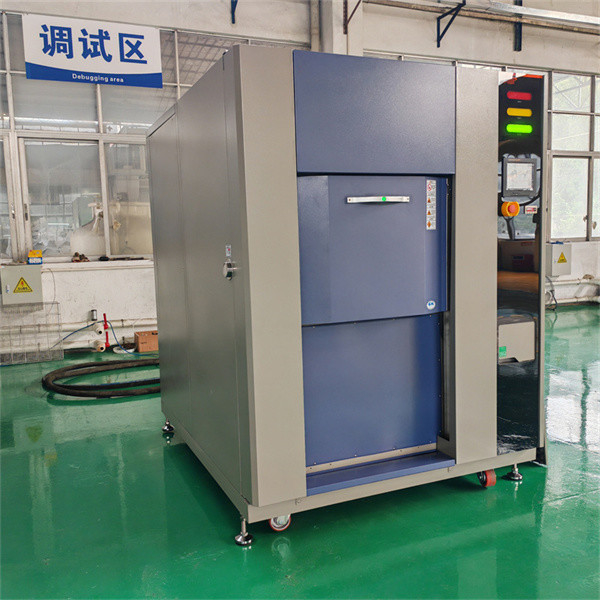

Thermal Shock Chambers for ASTM Material and Component Performance Testing

Brand Name:	PRECISION
Model Number:	TSC-80
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Customized Support:

OEM ODM

Origin:

China

Material:

Stainless Steel

Controller:

Programmable LCD Touch Screen

Temp Accuracy::

0.5°C

Temp Uniformity:

0.5°C

Refrigerant:

Environmental Friendly R23/R404

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

80L Thermal Shock Test Chambers

Touch Screen Thermal Shock Chambers

LCD Screen Thermal Test Chambers

Product Description

Thermal Shock Chambers for ASTM Material and Component Performance Testing

Product Description:

Our thermal shock chambers are designed to meet or exceed ASTM testing standards for evaluating the performance of materials and components under rapid and extreme temperature changes. These chambers are essential for ensuring the reliability and durability of your products in various applications.

Key Features:

ASTM Compliance: Our chambers meet or exceed the requirements of relevant ASTM standards for thermal shock testing.
Precise Temperature Control: Our chambers maintain accurate and stable temperatures in both hot and cold zones.
Rapid Temperature Transition: The chambers feature a high-speed transfer mechanism to quickly move test samples between hot and cold zones, minimizing the time it takes to complete a test cycle.
Programmable Control System: The chambers have a user-friendly programmable control system that allows you to set test parameters such as temperature, dwell time, and cycle count.
Data Logging: Our chambers can record and store test data for analysis and reporting purposes.
Safety Features: The chambers include safety features such as over-temperature protection and door interlocks to ensure safe operation.

3. Specific Parameters

Model	TSC-49-3	TSC-80-3	TSC-150-3	TSC-216-3	TSC-512-3	TSC-1000-3
Inside dimension(W x D x H) cm	40 x 35 x 35	50 x 40 x 40	65x 50 x 50	60 x 60 x 60	80 x 80 x 80	100 x 100 x 100
Outside dimension(W x D x H)cm	128x 190 x 167	138 x 196 x 172	149 x 192 x 200	158 x 220 x 195	180 x 240 x 210	220 x 240x 220
Internal material	#304 Stainless Steel
External material	Powder coated #304 Stainless Steel
High temperature range	60 ℃ ~ 200 ℃
Low temperature range	0 ℃ ~ -70 ℃
Test temperature range	60 ℃ ~ 180 ℃ / 0 ℃ ~ -70 ℃
Temperature recovery time	1-5min
Temperature stability ℃	±2
Cylinder switching time	10s
High temperature ℃	150	150	150	150	150	150
Heating time (min)	20	30	30	30	30	30
Low temperature	-40, -50, -65	-40, -50, -65	-40, -50, -65	-40, -50, -65	-40, -50, -65	-40, -50, -65
Cooling time (min)	40, 50, 60	40, 50, 60	40, 50, 60	40, 50, 60	40, 50, 60	40, 50, 60
Air circulation system	Mechanical convection system

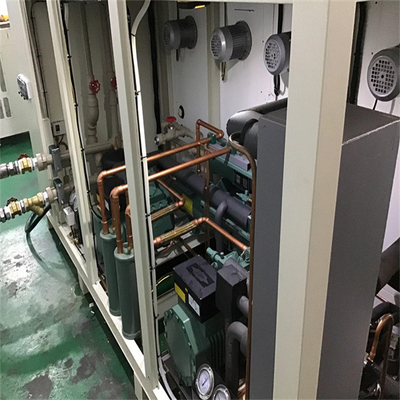

Cooling system	Imported compressor, fin evaporator, gas condenser
Heating system	Fin heating system
Humidification system	Steam Generator
Humidification water supply	Reservoir, Sensor-controller solenoid valve, recovery-recycle system
Controller	Touch panel
Electrical power requirements	3 phase 380V 50/60 Hz
Safety device	Circuit system load protection, compressor load protection, control system load protection, humidifier load protection, overtemperature load protection, fault warning light

Applications:

Material and component performance testing
Reliability testing
Durability testing
Quality control and product validation

Benefits:

Identifies potential failure points in materials and components
Ensures product reliability and durability in extreme temperature environments
Accelerates product development and validation processes
Reduces the risk of field failures and warranty claims
Meets industry standards and customer requirements

Thermal Shock Chambers for ASTM Material and Component Performance Testing 0

Why Choose Us:

We have years of experience in designing and manufacturing thermal shock test chambers. Our chambers are built to the highest standards and are backed by our commitment to customer satisfaction.
