| Place of Origin: | China |
|---|---|
| Brand Name: | AISRY |
| Certification: | ISO |
| Model Number: | ASR-8515 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Drop Height: | 40~150/40~180cm Can Be Customized | Max Size Of Specimen: | 1200*800*1000mm |
|---|---|---|---|
| Test Method: | Point, Edge, Face | Drop Height Error: | ±10mm |
| Power Supply: | AC380V 50HZ | Max Weight: | 80Kg |
| Net Weight: | 350kg | Size Of Test Bench: | 1700*1400*10mm |
| High Light: | 80kg Double Wings Drop Tester,750W Drop Testing Machine,1HP carton package drop tester |
||

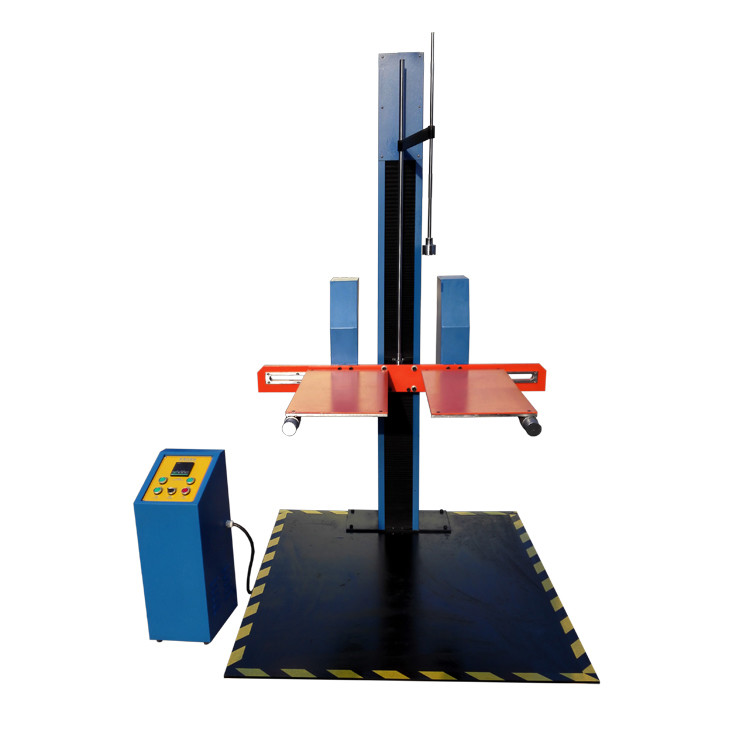

High Quality Double Wings Drop Tester For Parcel And Carton
Application :
Double columns carton package drop tester is used to measure the dropping impact incidence when the package in using, transportation and decorating. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
Features :
1, Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.
2, With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.
3, Damping screw lifting mechanism, preventing drop institution unexpectedly glide.
4, Pneumatic automatic chain, preventing swing arm unusual break away.
5, Extensible support bracket and baseboard.
Specifications:
| Quality Assurance Digital Double Wings Drop Testing Machine | |
| Model | ASR-8515 |
| Drop height | 400~1500mm can adjustable |
| Outside Dimension | 1200*800*1000mm |
| Weight | About 450kg |
| Test load | 0~80kg |
| Size bracket arm | 290*240*8mm |
| Drop error | ±10mm |
| Drop panel area | 1700*1400*10mm |
| Drop bottom medium | steel plate |
| Fall and lift way | Electric fall and rise |
| Horsepower | 1HP(750W) |
| Power | AC380V 50HZ |
