Touch Screen SS304 Simulated 390mm UV Aging Test Chamber

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-2134
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Detail Information
Temperature Range: RT+10℃~70℃ UV Wavelength: 315-400nm
Humidity Range: ≥95%R.H Temperature Fluctuation: ±0.5 °C
Volume: 137 * 53 * 136cm (W * D * H) Water And Consumption: Distilled Water,8 Liters/day
Temperature Uniformity: ±1 °C Standard Sample Holder: 24 Pairs
Bulb Numbe: UV Lamp 8,spare Lamp: 4 Effective Irradiation Area: 1020 * 290mm
High Light:

SS304 uv weathering chamber


55 mm UV Aging Test machine


390mm UV Aging Test equipment

Product Description

Hot Selling UV Aging Test Chamber Simulated UV Light Aging Test Machine


Application :

Weather simulated uv light aging test machine is designed and manufactured for simulate heat and ultraviolet radiation of the sun, rain and dew, to inspect and predict the aging resistance of the product according to the testing result, and is helpful to optimize the products .the testing type damage include: bleaching, discoloration, gloss loss, powder, crack, turbidity, bubble-based, strength decline and oxidation.


It's widely used in the industry, such as coating, printing ink, paint, resin, plastics, print, packing, motor van, cosmetic, metal, electron, galvanization, medical, and so on.


Material and structure:

1, Test chamber space: 400 × 1140 × 390mm

2, Dimensions: 500 × 1300 × 1360mm

3, Unit material: 304 stainless steel inside and outside

4, Sample rack: aluminum frame frame as the board

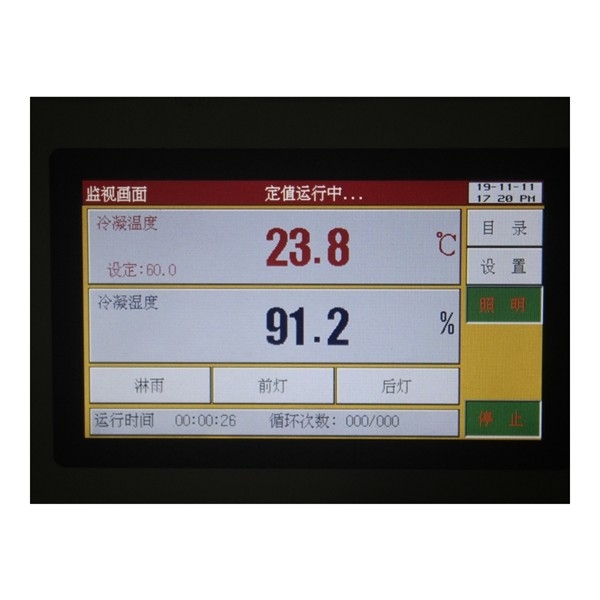

5, Control device: color touch screen programmer or RKC intelligent controller

6, Irradiation lamp: UVA-340 8 each side of a total of 4 sides

7, Two-way connection (RS232 communication interface)

8, Power leakage circuit breaker control circuit overload short-circuit alarm, over-temperature alarm, water protection


Technical Parameters:

Model ASR-2134
Control system Color LCD touch screen
Temperature range RT+10 °C~70°C
Temperature fluctuation ±3°C
Humidity range 45%~90%R.H
Distance between sample and lamp 55 mm
UV Wave length UV-B Wave (280~315nm) or
UV-A Wave (320~400nm)
Specimen size and quantity 75x150 mm, 48 pcs
Water and consumption Distilled water, 8 liters / day
Internal dimension W1170xD450xH500mm
External dimension W1330xD550xH1480mm
Power AC 220V 50HZ 5KW
Tube quantity 8 lamps, imported from America
Lamp Service Life 1600 hours
Weight 150KG
