| Place of Origin: | China |
|---|---|
| Brand Name: | AISRY |
| Certification: | ISO |
| Model Number: | ASR-5618 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Drop Height: | 30~200cm | Drop Floor Media: | Steel Plate |
|---|---|---|---|
| Air Source: | ≥0.5Mpa | Power Supply: | AC220V 50Hz 5A |
| Sample Diameter Range: | 10~120mm | Max Load: | 2kg |
| Drop Range: | 500x600mm | Machine Size: | W800*D900*H2200mm |
| High Light: | 50Hz Drop Testing Machine,AC220V Drop Testing Machine,2kg drop test apparatus |
||

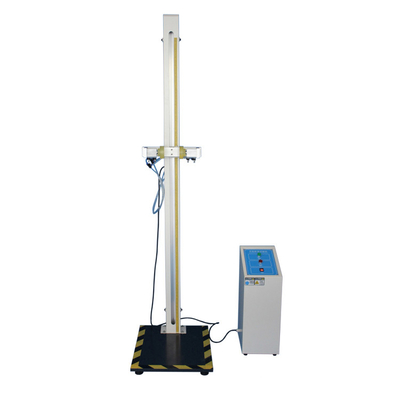

Cell Mobile Phone Drop Test Equipment Dropping Testing Machine
Use
The machine is designed to assess the impact of falling behind on the performance of the product when the product is used in the experiment. It is applicable to: mobile phone, PDA, telephone electronic dictionary, CD, MP3,bottle and other small consumer electronic products for original posture and acceleration drop test.
Power: vacuum adsorption fall, height of fall can be set, manual rise and fall, accurate impact position, measurement of acceleration and speed.
| Multi-angle drop device | 0 °, 45 ° and 90 ° |
| Drop height indicator | 1cm |
| Effective height of drop | 300 -- 1800mm(optional: 2000mm) |
| Maximum weight allowed | 2kg |
| Falling floor medium | steel plate |
| Drop range | 500x600mm |
| Use gas source | more than 0.5Mpa |
| Machine size | W800XD900XH2200mm |
| Electrical source | AC220V 50HZ 5A |
