ISO Paperboard Surface Water Absorption Test For Paper

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-5684
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Metal Cylinde: 100±0.2㎝ Absorbent Paper Was Quantified: 200~250 G/㎡
Absorption Rate: 75 Mm/10min Roll Length: 200±0.5 Mm
Mass Shall: 10±0.5KG Test Water Consumption: 100 Mm±5 Ml
Function: Water Absorption Tester Warranty: 1 Year
High Light:

200mm Water Absorption Tester


20kg Cobb Absorbent Tester


50mm Paperboard Testing Equipments

Product Description

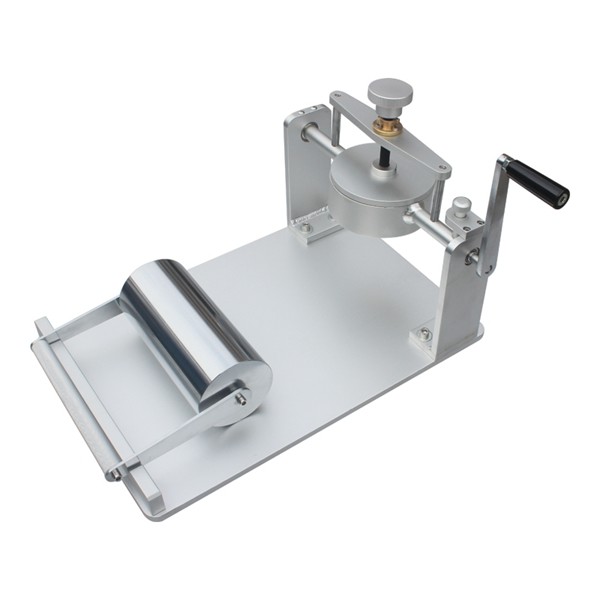

Absorbability Tester Cobb Absorbent Tester Paperboard Surface Water Absorption Tester


Application :

water absorption tester is designed according to GB/T 1540-2002 Paper and board-Determination of water absorption-Cobb method ( equal to ISO 535-1991), which is used to test the absorbency of paper and cardboard, but not applied to evaluate the writing capability of paper and cardboard.


Technical parameters:

Metal cylinder inside area:

100±0.2cm², height: 50mm, keep the touching part

smooth between cylinder ring part and specimen

Absorbency paper: 200~250g/m², absorbency speed: 75mm/10min
Smooth metal roller: width:200±0.5mm, weight:10±0.5kg
Dimension of item1: 390×280×410 (mm)
Weight: 20kg
Dimension of itemII: 315×280×110 (mm)
Weight: 25kg
