Power: | Electronic | Standard: | ASTM-D2794, JIS-K5400 |
---|---|---|---|
Falling Ball Control Method: | Manual Setting | Warranty: | 1 Year |
Usage: | Impact Test Machine | Test Sample: | Plastic Or Coating, PVC |
Coating Specimens Max Height: | 50~500mm | Plastic Specimens Max Height: | 50~1000mm |
High Light: | 1000mm Dupont impact tester,Fastness Dupont impact testing machine,ISO Dupont Impact Test Instrument |

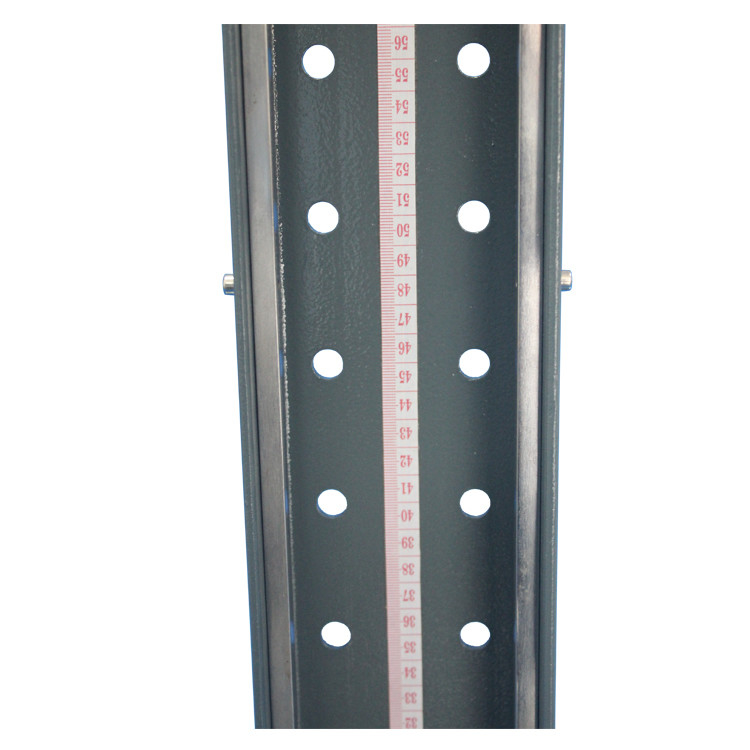

Hot Selling Dupont Impact Test Instrument Manufacturer Price
Application :
This machine is suitable for the fastness of plastics, ceramics, acrylic, glass fiber and other materials and test coatings. Principle: The instrument is adjusted to a certain height with a steel ball of specified weight, so that it can fall freely and hit the sample. Depending on the extent of its damage. DuPont impact testing machine meets the requirements of JIS-K5600 (paint), ASTM-D2794, JIS-K5400 and other standards according to the standard.
Specification :
project | specification | |
General material | Coating test piece | Plastic test piece |
Maximum height | 50~500mm | 50~1000mm |
Falling ball control method | Manual setting | |
Impact head radius | 1/2,1/4,3/16,1/16in | 7.9mmR(5/16”R) |
Impact platform radius | Flat 1/4,3/16,1/8,1/16in | 8.1mmR, 15mmR |
Weight | 300,500,1000g | 1000g,2000g |
Volume (about) | 50cm ×50cm ×150cm |
