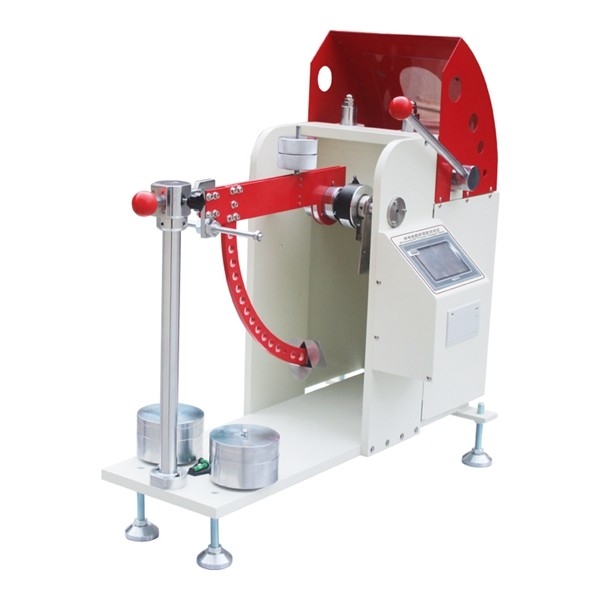

ISO 3036 Puncture Resistance Paper Testing Equipments

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-XJJ-22
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Edge Fillet Radius: R(1.5±0.1)mm Standard: ISO3036 ,GB26797
Size: 800 *500 * 750 Mm Net Weight: 145kg
Measurement Range(J): 0-48 Four Files Finger Friction: <0.25J
Power: Electronic Warranty: 1 Year
High Light:

ISO 3036 Puncture Resistance Tester


145kg Puncture Resistance Testing Equipments


Cardboard puncture resistance testing machine

Product Description

Hot Sales Paper Board Puncture Resistance Tester With Cheap Price



Application :

Microcomputer intelligent corrugated board puncture strength tester Apply for puncturing strength test for corrugated cardboard and cartons.



1.Operation knob with self-reset function;

2.Safe protection;

3.LCD displayer.


Specification :

Model ASR-XJJ-22
Capacity (optional) 1~48J
Resolution deviation

Rule A: ±0.05J, Rule B: ±0.1J, Rule C: ±0.2J,

Rule D: ±0.5J, (20~80% for limitation)

Friction of pointer <0.25J
Resistance of swing axis and air >120times
Cone size 60x60x60mm
Measurement circle R (1.5±0.1)mm
