| Place of Origin: | China |
|---|---|
| Brand Name: | AISRY |
| Certification: | ISO |
| Model Number: | ASR-XJJ-11 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Application: | Hard Plastic, Ceramic And Other Non-metallic Materials | Warranty: | 1 Year |
|---|---|---|---|
| Size: | 550*400*690mm | Weight: | 30kg |
| Test Angle: | 150 Degree | Pendulum Energy: | 2.75J;5.5J;11J |
| Impact Speed: | 3.5M/SET(11T/SEC) | Capacity: | 30,50,150 Kg Cm Selection |
| High Light: | 3.8m/S Pendulum Impact Resistance Tester,ISO179-1992 Impact Resistance Tester,GB/T1043-93 Impact Test Apparatus |
||

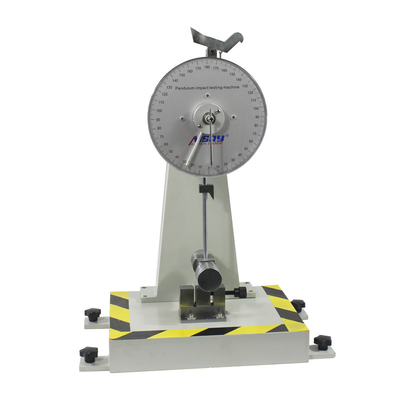

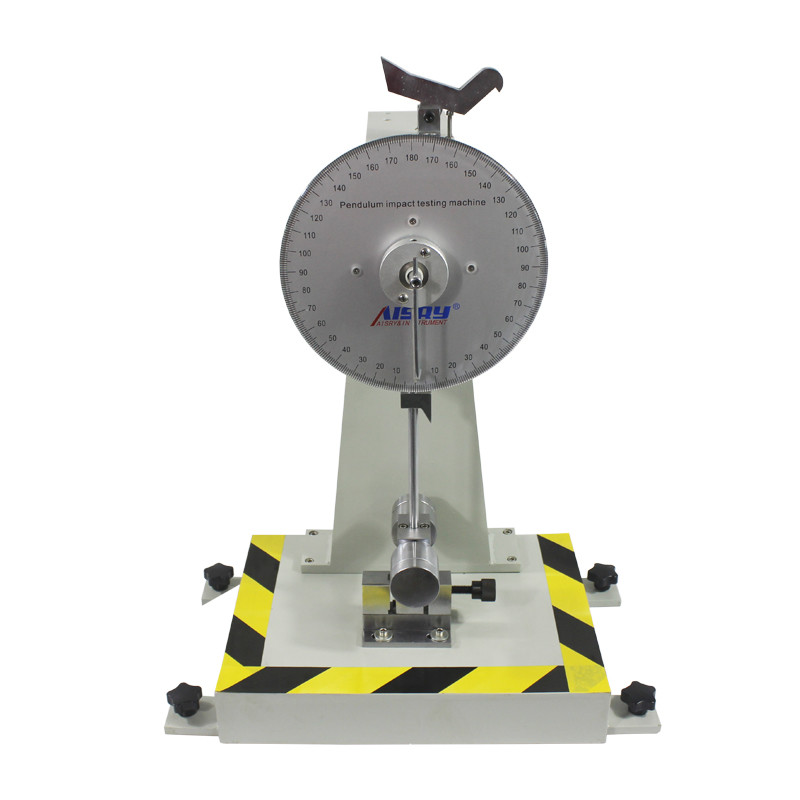

Pendulum Impact Resistance Tester Toughness Of Rigid Pendulum Test Machine
ASR-XJJ-11 Charpy Impact Testing Machine is used to measure the impact ductility of rigid plastic, fiber-reinforced composite materials, nylon, glass fiber reinforced plastic, ceramics, cast stone, insulation materials as well as other non-metallic materials. It is a common quality test equipment used in scientific research institutions, universities, and some factories.
The main specifications of this model fulfills the following standards: Plastics-rigid material freely supported beam impact force testing to ISO179-1992 standard; rigid plastics freely supported impact testing method to GB/T1043-93 standard; plastics freely supported impact testing machine to JB/T8762-1998 standard.
| Model | ASR-XJJ-11 |
| Impact speed | 3.8m/s |
| Impact energy | 7.5J, 15J, 25J, 50J |
| Display | Dial |
| Pendulum torque | Pd 7.5=3.8662 Nm, Pd 15=7.7324 Nm, Pd25 12.888= Nm, Pd 50=25.777 Nm |
| Jaw radius | 1mm |
| Impact blade angle | 30° |
| Impact blade radius | 2mm |
| Standards | ISO180,GB/T1043,JB/T8761 |
