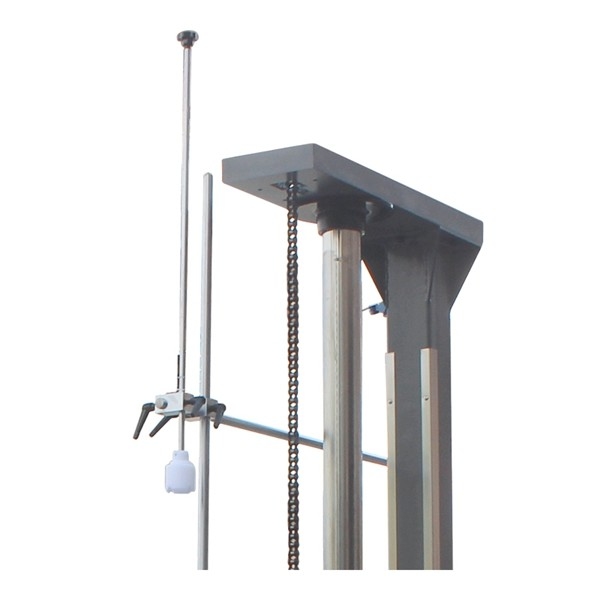

IEC68-2-27 80Kg Single Wing Paper Testing Equipments

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-8516
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Drop Height: 30~150/30~180cm Max Weight: 80Kg
Max Size Of Specimen: 800*800*1000mm Net Weight: 380kg
Test Method: Point, Edge, Face Size Of Test Bench: 1700*1200*2315mm
Drop Height Error: ±10mm Pallet Dimension: 180*180mm
High Light:

IEC Carton Box Dropping Tester


0.7Mpa Box Compression Tester


80Kg drop impact tester

Product Description

High Quality Single Wing Carton Box Dropping Tester With Cheap Price


Application :

Single wing drop impact tester is used to measure the dropping impact incidence when the package in using, transportation and decorating. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.


Features :

1, Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.

2, With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.

3, Damping screw lifting mechanism, preventing drop institution unexpectedly glide.

4, Pneumatic automatic chain, preventing swing arm unusual break away.

5, Extensible support bracket and baseboard.


Specification :

Model ASR-8516
Drop height range(mm) 300---1500/300----2000
Specimen max.weight(kg) 85
Specimen max. size(mm) 800*800*800
Drop mode Freedom
Machine Dimension(mm) 1500*1000*2150/1700*1200*2750
Machine weight(kg_ 480/550
Power supply AC220V 50Hz compressed air 0.5~0.7Mpa
Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27
