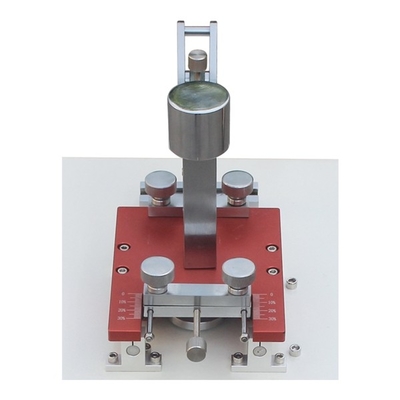

Good Price Leather Friction Color Fastness Test Machine Leather Abrasion Test Equipment
Introduction:
This machine test the degree of decolorization of dyeing leather after friction. It can used to test the leather color resistance to dry, wet and friction.
This test machine is the working table driven by motor with specified speed and standard pressure to do reciprocating linear motion, the motor automatically stop if it arrives the specified number.
Standard :
ISO-11640-1993 ,QB/T 2537-2001,GB/T 1327
Applicable industry:
Applied to test leather property in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments
Technical parameters:
Model | ASR-7123 |
Testing block size | 15 * 15mm (if need) |
Auxiliary load | 500g, 1000 g |
Testing table range | 37 mm ± 1mm |
Speed of abrasive head | 40 ± 2/min |
Maximum Speed of abrasive head | setting 9999 * 1, 9999 * 10 times, 9999 * 100 times |
Volume | 30.5 * 43 * 47.5cm |
Power | 20W |
Power supply | AC220V 50HZ |
Outside dimension | 275mm * 245mm * 366mm |
Weight | 21kg |
