Fixed Temperature 10 Groups 2000g Tape Adhesion Tester

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-5604B
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Application: Tape Retention Test Machine Size: 97*55*110cm
Weight: 105KG Temperature Control: Normal Temperature~200℃
Warranty: 1 Year Power Supply: AC220V, 15A
Number Of Test Group: 10 Groups Standard Roller: 2000g±50g
High Light:

2000g Tape Retention Test Machine


15A Adhesive Tape Retention Tester


105KG Tape Retention Test Machine

Product Description


New Type Fixed Temperature Adhesive Tape Peel Retention Tester


Test principle:

Test board with adhesive tape vertically hang on the test rack, and hang stipulate weight of weights at end, arrording to the displacement of the sample after a certain time or the time of complete departure of the sample To test the ability of adhesive specimen to resist pulling.


Design Standard:
1. GB 4851 pressure sensitive adhesive tape holds the viscosity test method
2. JIS Z0237 pressure sensitive adhesive tape and pressure sensitive adhesive sheet test method
3. ASTM D3654 pressure sensitive band shear viscosity test method


Fixed Temperature  10 Groups 2000g Tape Adhesion Tester 0

Specification :

Number of test group: 10 groups
Standard roller: 2000g±50g
Weights: 1000g±10g(Contains the load board weight)
Test plate size 50(L)mm×50(W)mm×1.5(D)mm
Auto-timer: 0~9999H,59Min,59sec Switchable
Temperature Control: Normal Temperature~200℃
Temperature Display: 0.1 ℃
Heating Mode: Heated air circulation
Weight: 105KG
Size: 97*55*110cm

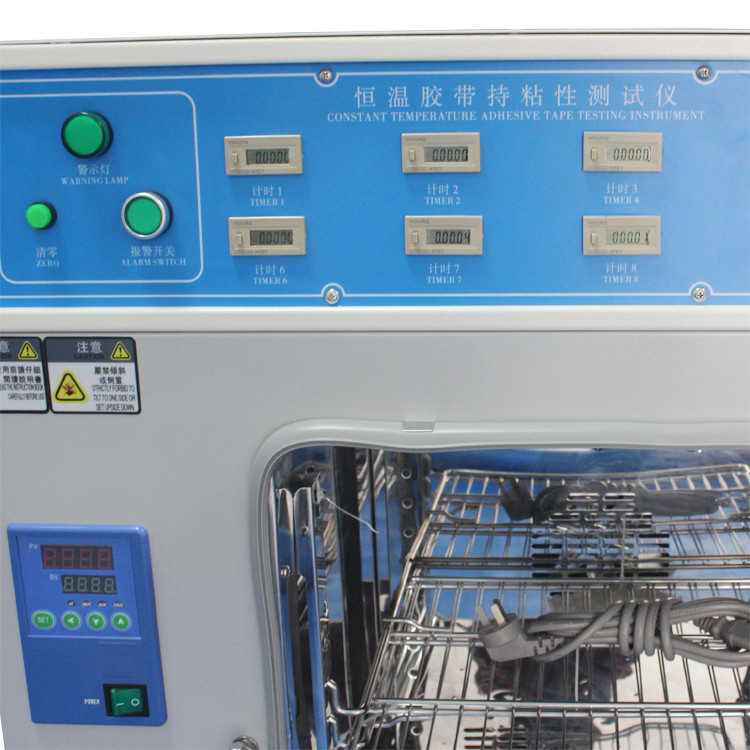

Fixed Temperature  10 Groups 2000g Tape Adhesion Tester 1

Fixed Temperature  10 Groups 2000g Tape Adhesion Tester 2
