| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 15 work days |
| Supply Ability: | 200 sets per month |
| Temperature Range: | RT+10℃~70℃ | UV Wavelength: | 315-400nm |
|---|---|---|---|
| Humidity Range: | ≥95%R.H | Temperature Fluctuation: | ±0.5 °C |
| Volume: | 137 * 53 * 136cm (W * D * H) | Water And Consumption: | Distilled Water,8 Liters/day |
| Temperature Uniformity: | ±1 °C | Standard Sample Holder: | 24 Pairs |

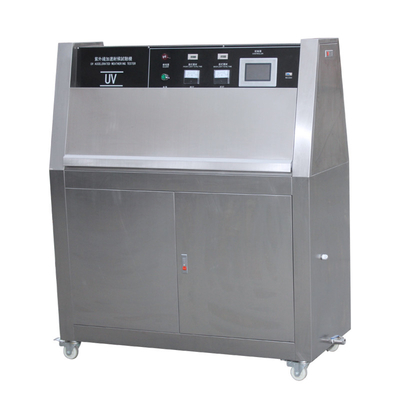

Electronic Power and Process Testing Machine Usage UV Aging Test Chamber
Material and structure:
1, test chamber space: 400 × 1140 × 390mm
2, Dimensions: 500 × 1300 × 1360mm
3, unit material: 304 stainless steel inside and outside
4, the sample rack: aluminum frame frame as the board
5, the control device: color touch screen programmer or RKC intelligent controller
6, irradiation lamp: UVA-340 8 each side of a total of 4 sides
7, can be two-way connection (RS232 communication interface)
8, power leakage circuit breaker control circuit overload short-circuit alarm, over-temperature alarm, water protection
Technical Parameters:
| Temperature range: | RT +10 ℃ ~ 70 ℃ |
| Humidity range: | ≥ 90% RH |
| Ttemperature uniformity: | ± 1 ℃ |
| Temperature fluctuation: | ± 0.5 ℃ |
| Center distance of the lamp: | 70mm |
|
Distance between the test object and the lamp: |
50 ± 3mm |
| Irradiance: | 1.0W / m2 adjustable |
| lamp: | L = 1200 / 40W, 8 (UVA service life of more than 1600h) |
| Controller: | RKC intelligent controller |
| Temperature control mode: | PID self-integer SSR control |
| Standard specimen size: |
75 × 290mm (special specifications need to be described in the contract) |
| Sink water depth: | 25mm automatic control |
| Effective irradiation area: | 1020 × 290mm |
| UV wavelength: | UVA range of 315-400nm |
