Digital Screen Rubber Alcohol Resistance Test Instrument

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-5600
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Power: Electronic Application: Alcohol Rubber Abrasion Testing
Warranty: 1 Year Standard: CNS.4158,GB/T,IEC68
Speed: 5~60rpm Adjustable Weight: 50kg
Power Supply: 220V 50HZ Test Load: 75-960g
High Light:

960g Alcohol rubber abrasion tester


960g Alcohol Abrasion Tester


60rpm Alcohol wear tester

Product Description

Desktop Digital Screen Rubber Alcohol Resistance Test Instrument




This is suitable for mobile phone, PDA, MP3, CD player, portable computer and all kinds of surface coating on the friction test.




This machine is suitable for the abrasion resistance test of the surface coating test sample. The load of 500g, 200g, 100g, 50g, 20g, 10g rubber and other test medium and the sample friction after a certain number of rotations to determine the effect of wear.



* A variety of clamping methods and a variety of ways to wear, so your experiment accurate and productive.

*LED digital display set the counter, the number of tests can be arbitrarily set, the actual number of visual tests.

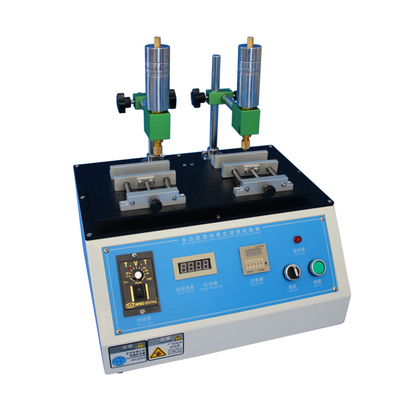

 Digital Screen Rubber Alcohol Resistance Test Instrument 0



 Operating instructions

According to the marked connected to the appropriate power 220V, the governor switch to a

 minimum, to avoid excessive speed, resulting in abnormal machine. Turn on the power, first

 test machine, turn off the power if any abnormalities.


Select the cotton or rubber head or other test medium fixed in the test fixture, the machine

 idling run to see whether there is any abnormal, to confirm the normal machine before the

 product test.


Select the required test rod, the workpiece will be tested fixed on the workbench, and strive

 to keep its friction site vertical and a reasonable range. Coupled with the corresponding test

 weight to test load requirements


According to different conditions and different product requirements, enter the required

number of cycles on the counter friction (0~9999 times), before setting the data must

first RESET key clear.


Depending on the length of the test required for different product range, select the appropriate

 friction distance. To adjust the friction distance, first open the back cover, and then determine

the friction distance of the product by adjusting the distance between the screw on the motor

head and the center of the motor head.


As the alcohol friction test, in the "round head" friction rub wrapped with special rubbing cloth

 dipped in alcohol for friction.


As a rubber friction test, take the rubber strip 60mm long into the rubber friction fixture, and

gently tighten the front screw, such as rubber friction, the friction head unscrew, and then

pull out a period of rubber can be used.

8 Turn on the job start switch.

During the normal operation of the machine, press the stop key immediately if an abnormal

situation occurs. At this time, all operation of the machine will be stopped. Restart then the

counter still records the current number, you can continue to test.


According to the selected number of friction operation is completed, according to the results

of the product to make a decision.

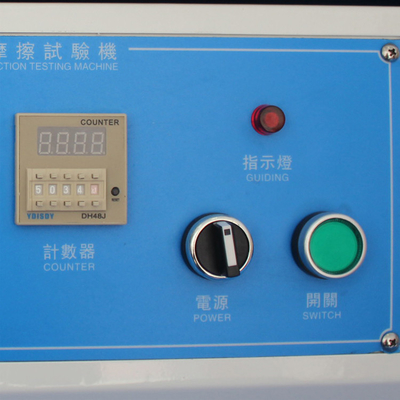

Digital Screen Rubber Alcohol Resistance Test Instrument 1



Digital Screen Rubber Alcohol Resistance Test Instrument 2
