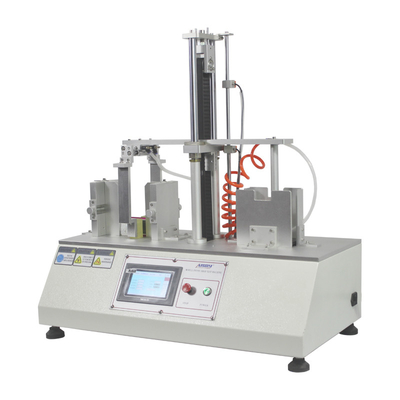

Cell Phone Repeating Micro Drop Testing Equipment

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-525
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Max Load Of Specimen: 2kgf Speed: 5~20times/min
Size: W550*H750*D650mm Drop Effective Height: 150mm Or Customized
Test Amount: 2 PCS Air Pressure: ≥0.5Mpa
Test Cycle: 1~999,999times (cycle) Weight: 40kg
High Light:

150mm Micro Drop Testing Equipment

,

20time/min Micro Drop Testing Equipment

,

ISO Cell Phone Micro Drop Tester


Product Description

High Quality Cell Phone Repeating Micro Drop Testing Equipment





Application:



1.The machine is suitable for the free fall test of mobile phone (mobile phone), interphone, electronic dictionary, building and other small consumer electronic products and parts, such as talking phone, CD/MD/MP3, etc.
2. The mobile phone microdrop testing machine is a pneumatic structure, which will be placed in a special fixture (adjustable stroke), which will be locked in a special fixture (adjustable stroke), and the cylinder will be released, and the test piece will be free fall test.The drop height can be adjusted up and down, and with a height gauge, the height of the specimen drop can be found.


Working Principle:



Lifting cylinder driving on the fixture (gas finger) decline and clamp the mobile phone, rise, and then loosen the phone, mobile phone into free fall movement, at the same time the double acting cylinder expansion will push the mobile phone to the position where Fixture can clamp it. Lifting cylinder driving on the fixture (gas finger) decline and clamp the mobile phone, rise, and then loosen the phone, mobile phone into free fall movement. So until the setting number over and over again.



Cell Phone Repeating Micro Drop Testing Equipment 0



Features:


The setting number can be automatically stop surface materials of the drop: aluminum, thickness of 12 mm.
Prompt functions: can set the number fell to the setting value, can be automatically stop testing.
Adopts Japan SMC pneumatic rodless cylinders for mobile phone mention and drop drive motor, match with precision double acting cylinder for reparations action, durable using; Can realize products such as mobile phone repeatedly fall, to detect the product resistance to impact by a high of falling
Due to the pneumatic components and autocratic control mode, greatly improve test speed and consistency.
The LCD touch control panel + PLC programmable controller for action program.
Independent count, it will be automatic stop testing when attain the setting number.


Main Dispositions



Touch screen 1pcs
PLC 1 pcs
Up and down the cylinder 1 set
Clamping cylinder promote 2 pcs
Mechanical finger 2 pcs





Cell Phone Repeating Micro Drop Testing Equipment 1

Technical parameters



Product name Mobile phone micro drop tester
Application Mobile micro test
Test stations 2 pcs
Power supply 220V 50Hz(optional)
Warranty 12 Months
Allow maximum weight of specimen 2Kgf(max)
Test speed range 5~20time/min
Drop effective height 150mm or optional
Air source ≥0.5Mpa
Machine Weight 40kg
Machine size 420*370*950mm



Cell Phone Repeating Micro Drop Testing Equipment 2
