| Place of Origin: | China |
|---|---|
| Brand Name: | AISRY |
| Certification: | ISO |
| Model Number: | ASR-5620 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Application: | Zipper Life Tester | Standard: | CNS-1083,QB/T2171~2173 |
|---|---|---|---|
| Reciprocating Stroke: | 75mm | Warranty: | 1 Year |
| Motor: | 1/4HP | Counter: | LCD, 0-999,999 |
| Transverse Clamping Device Width: | 25mm | Reciprocating Speed: | 30 Cycles/min |
| High Light: | Zipper Life Testing Apparatus,BS3084 Life Testing Apparatus,QB/T2171 Zipper Reciprocating Tester |
||

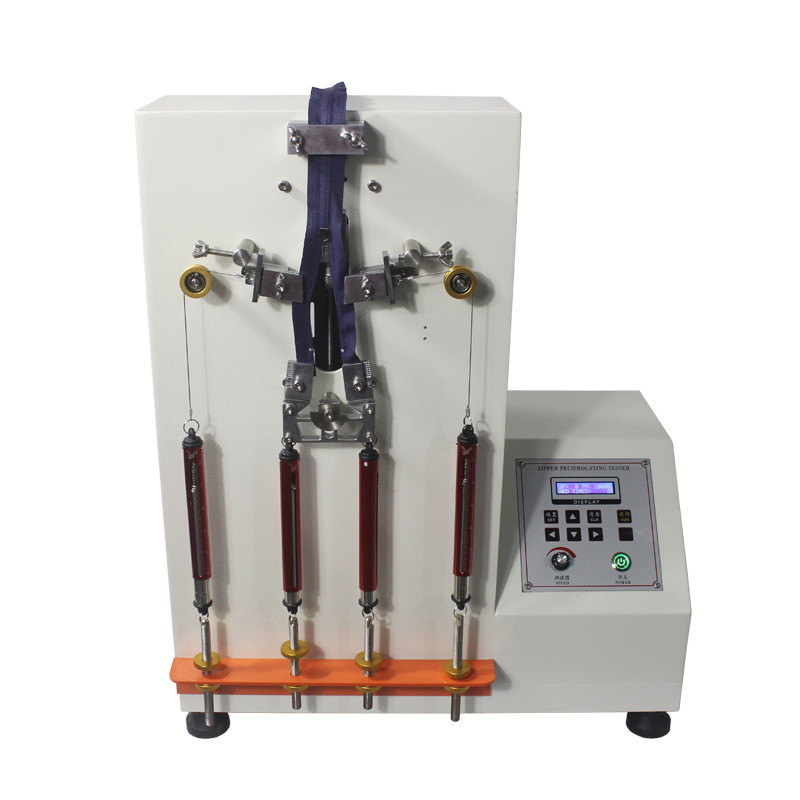

Zipper Reciprocating Tester Zipper Life Testing Apparatus
APPLICATION:
To determine the product life of metal or plastic zipper under condition of specified load of specified times of stretching cycle. This machine is used for zipper in a strength process of lateral and longitudinal, it could be test its bearing ability in reciprocating motion for a regulation time. When test, this tester lead the puller of zipper in an equal-speed to do the reciprocating motion for certain number of times of per min & least until regulated times up.
RELATED STANDARDS: STANDARDS BS3084 QB/T2171, 2172, 2173
FEATURES:
1.Times of stretching cycle settable freely, and record the times automatically.
2.Automatically stop when time is up or manually optional.
3.Automatically stop and Voice alarm when machine stops.
4.Compact Chinese/English control panel and simple operating.
KEY SPECIFICATION:
| Test cycle range | 0~9999 time(Settable) |
| Reciprocating speed | 30 cycles/min |
| Reciprocating travel | 75mm |
| Element width range | 3.5mmm～12mm |
| Gripping device width horizontal | 25mm |
| Gripping device width vertical | 10mm |
| Max load range | 30N |
| Power supply | AC220V 80W 50Hz |
| Instrument dimension | 400×350×600mm(L×W×H) |
| Instrument weight | 50Kg |
