| Place of Origin: | China |
|---|---|
| Brand Name: | AISRY |
| Certification: | ISO |
| Model Number: | ASR-5025 |
| Test Speed: | 10-90c/m | Buckling Angle: | 45° ; 60° ; 90° ; 180° |
|---|---|---|---|
| Test Capacity: | 6 Wires Per Time | Loading Weights: | 50g, 100g, 200g, 300g, 500g (6 Unit Respectively) |
| Test Station: | 6 Groups | Bending Angle: | 0- ± 90 ° |
| Total Number Of Swing Counter: | 0-999999 Times | Weight: | 100kg |
| High Light: | AC220V Durability Tester,50Hz Durability Tester |
||

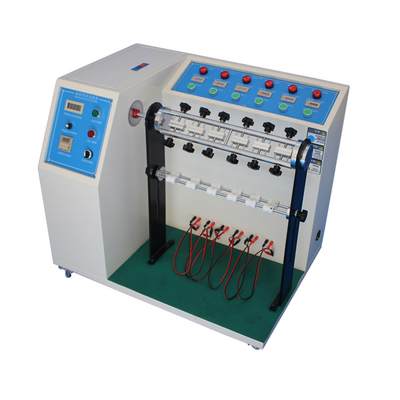

Automatic Plug Wire Swing Durability Tester, Cable Swing Test Machine , Wire Life Testing Apparatus
Electric Wires Buckling Resistance Tester is used to test the buckling resistance of electric wires. The method is to fix one end of specimen and load on other end to swing the wire with certain times.
The cable bending tester is used for testing bending resistance of outgoing line of power plug and wires.
Fix the wires by fixture and add specific load.
During test, the fixture will swing side to side. Under certain times, check disconnection rate. Or check the swinging times when it fails to electricity or loading.
The tester can be auto counting and auto stop.
Main parameter:
| Test speed | 10-90c/m |
| Buckling angle | 45° ; 60° ; 90° ; 180° |
| Test capacity | 6 wires per time |
| Loading weights | 50g, 100g, 200g, 300g, 500g (6 unit respectively) |
| Dimensions | 86*51*81cm(L*W*H) |
| Power | AC220V/50Hz |
