ASTM D4970 Martindale Abrasion Resistance Test Machine

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-101-4Z
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Detail Information
Speed: 50-2r / Min Max Stroke Of Movement: 60.5+/-0.5mm
Weight Of Holder And Spindle: 200+/-1g Size: 885 * 600 *410mm (L*W *H)
Application: Fabric And Textile Abrasion Resistance Testing Machine Standard: ASTM D4970, ISO12945-2 GB / T13775
Drive System: PLC Power: Electronic
High Light:

Martindale Abrasion Resistance Tester


Martindale Abrasion Test Equipment


Martindale Abrasion Tester

Product Description

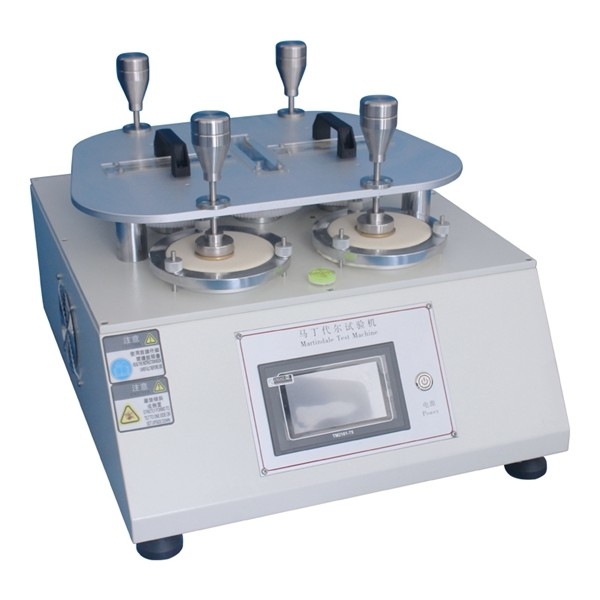

Martindale Abrasion Resistance Test Machine Martindale Abrasion Test Equipment


Application :


Martindale abrasion tester & pilling tester. To determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abradants at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.

The unique design of martindale tester allows removal of individual sample holders for examination without lifting the top motion plate. Martindale tester provides individual counters and parking function, interval time settable, large touch-screen display, Standard sample holders and 9 and 12kpa Weights are included.


Specifications :

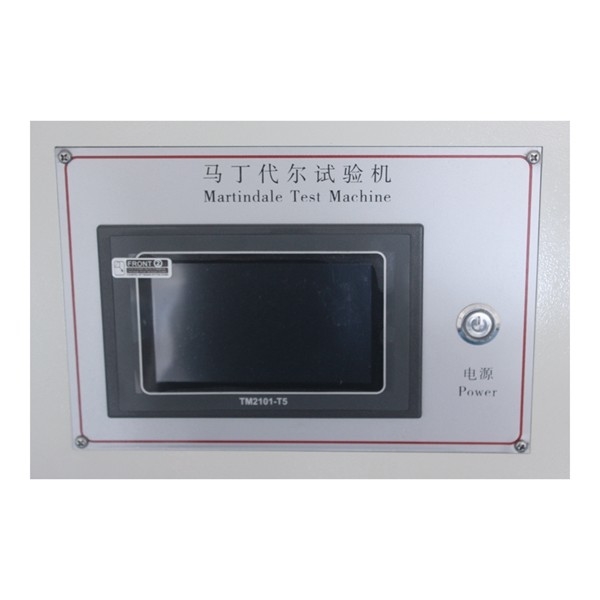

Drive system: PLC, programmable control with big Touch-screen

Adjustable test speed

Abrasion test

a) Max stroke of movement: 60.5+/-0.5mm

b) Weight of holder and spindle: 200+/-1g

Pilling test

a) Max stroke of movement: 24+/-0.5mm

Weight of holder and spindle: 155+/-1g


Optional orders (Excluded) :


a) Test Specimen Cutter. (38mm diameter/12cm²) with cutting mat and spare blades.

b) Abradent Fabric & Backing Felt Cutter. (140mm diameter/154cm2) with cutting mat and spare blades.

c) Standard Wool Abradent Fabric SM25. 1.6M wide x 5M length – For abrasion test and pilling test(when utomati)

d) Standard Backing Foam. Width 1.5M, Length 0.5M.

e) Standard Backing Wool Felt Piece (woven) – 1m x 1.5m.

f) EMPA Photographic Standards for Pilling Test (3 x 4 knitted)

g) EMPA Photographic Standards for Pilling Test (3 x 4 woven)

h) SM 50 Photographs for Pilling Test IWS + ASTM.


Standards :


EN ISO 12945-2/12947-1/12947-2/12947-3/12947-4, ISO 20344, ASTM 4966/4970, BS EN 388/530, BS 3424/5690, JIS L1096, DIN 53863/53865, GB/T 13775, SATRA TM31, IS 12673, IWSTM 112/196, IWTO 40-88, SFS 4328, NEXT 16, GMW15651, ISO 5470-2, M&S 17 / 19 / 19C, Next 18/18a/18b, GB/T4802.2/21196-1/21196-2
