accuracy 0.01mm Tissue Paperboard Thickness Gauge

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-5633
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Application: Paper And Cardboard Thickness Tester Standard: GB451.3
Warranty: 1 Year Function: Testing For Paper And Cardboard Thickness
Weight: 2kg Package: Box
Measuring Range: 0-4mm Test Accuracy: 0.01mm (0.001 Optional)
High Light:

4mm paper thickness gauge

,

2kg Tissue Thickness Tester

,

0.01mm Paper Testing Equipments


Product Description

AISRY High Quality Tissue Thickness Tester Paper And Board Thickness Gauge



Product Usage:
The Paper Thickness Gauge (0.01) is a testing instrument specially developed for the production of paper and paperboard and some sheet materials with a certain degree of tightness. Paper and paperboard thickness testing equipment is an essential inspection tool for paper-making companies, packaging manufacturers, and quality inspection and supervision departments.





Technical Parameters:



Measuring range 0-4mm
Test accuracy 0.01mm (0.001 optional)
Display mode digital display (optional pointer)
Indication error 0.05%
Contact area 200±5 mm2
Contact pressure 100±5kpa
Parallelism ≤0.035mm
Working environment temperature (20±10)°C, humidity<85%

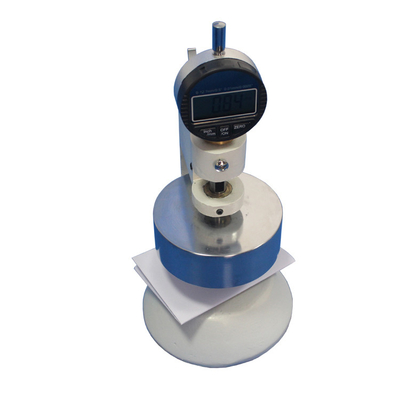

accuracy 0.01mm Tissue Paperboard Thickness Gauge 0



accuracy 0.01mm Tissue Paperboard Thickness Gauge 1

accuracy 0.01mm Tissue Paperboard Thickness Gauge 2
