9N Double Position Friction Color Fastness Testing Machine

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-7024
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Application: Color Fastness Testing Machine Warranty: 1 Year
Heavy Load: 9N Counter: 0 ~ 999,999 Times
Weight: 50kg Fixture: 2 Groups
Motor: 1 / 4HP Power Supply: 220V
High Light:

Color Fastness Tester


9N Cloth Abrasion Test Equipment


60 rpm color fastness testing machine

Product Description

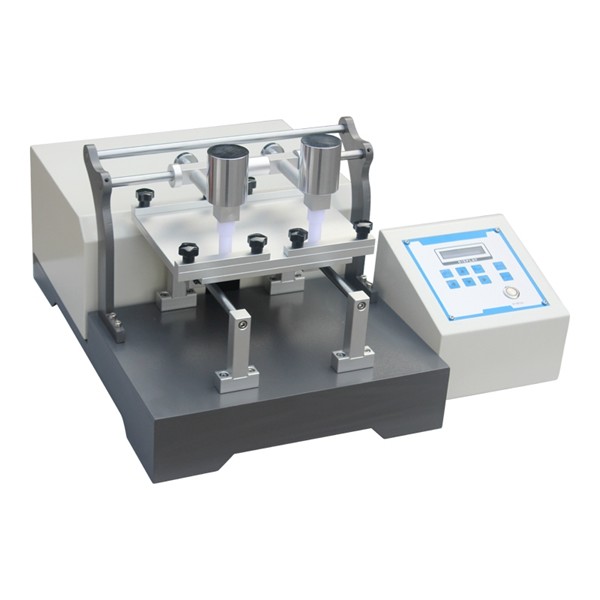

Double-Position Friction Color Fastness Testing Machine Cloth Abrasion Test Equipment



Friction color fastness testing machine conforms to ISO-105, ASTM-D2054, JIS-L0849 standards ,the machine is suitable for dyeing of fabrics - leather by rubbing the degree of discoloration, test method is based on the dry or wet white cotton cloth, wrapped in friction cone, then rubs caught in the trial stage of the test piece, you can assess color fastness grade.


Technical Parameters:

Mode ASR-7024
Type Double cone electric motor
Test piece 140 × 50mm
Heavy load 9N
Motor 1 / 4HP
Friction Speed 60Rpm
Friction distance 100mm
Friction cone 16mm
Counter 0 ~ 999,999 times
Volume 58 × 55 × 38cm
Test table 26 × 18 cm
Control Box Size 19 × 19 × 16cm
Weight 50kg
Power source AC220V, 3A
