45° Test Angle Pencil Hardness Tester For Mobile Phone Coating

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-5608
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Application: Electric Pencil Hardness Tester Power Supply: 220V 50Hz
Warranty: 1 Year Moving Speed: 0-100mm / Min
Trip Distance: 40mm Load: Adjustable, 500g 250g 250g
Test Platform Movement Speed: 5mm/second, Adjustable Power: Electronic
High Light:

45° Test Angle Pencil Hardness Tester


Mobile Phone Coating Pencil Hardness Tester


100rpm Abrasion Testing Machine

Product Description

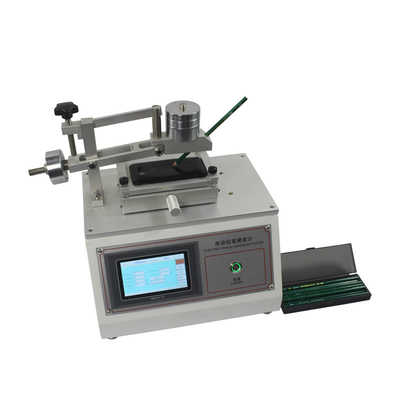

45° Test Angle Electric Pencil Hardness Tester For Mobile Phone Coating


Brief Introduction:


Electric pencil hardness testing machine is used to test coating hardness of all kinds of finished products. Such as mobile phone shell, MP3 / MP4 shell, notebook computer shell and other digital products shell. The machine adopts electric control and it drives by an AC adjustable speed motor, to achieve movement left and right, low noise, stable.




Please use hardness pencil scratch surface of the coating to test surface hardness of the coating. Fixing the hardness pencil to 45 ° angle, and make the front head of the pencil contact with surface of the coating with proper load. Moving the test platform to make surface of the coating move and pass the front head of the pencil in accordance with a certain speed (JIS standard 0.5 mm/s), then the most soft pencil hardness level which cause no damage (scratches) can be regarded as hardness of the coating layer.




Test angle 45°
Load 500g, 750g, 1000g (adjustable)
Speed 5~100rpm (adjustable)
Trip distance 40mm
Platform About 12*17cm, it is used to fix sample
Power supply 220V/50Hz
Accessories 6B~6H standard pencils (total 13pcs), 1pc weight (500g), 2pcs weight (250g)
