|Studio Size:||W 400×D280×H250 (mm)||Light Source:||15W UV-B UV Two|
|Wavelength Peak:||313nm||Temperature Range:||Up To 60℃|
|Sample Rack:||Adjustable||Operating Environment:||≦35℃, 40% ~ 85%R.H.|
|Power Supply:||220V 50HZ||Warranty:||1 Year|
313nm UV Aging Tester,
15W uv weathering chamber,
150mm UV Aging Test Chamber

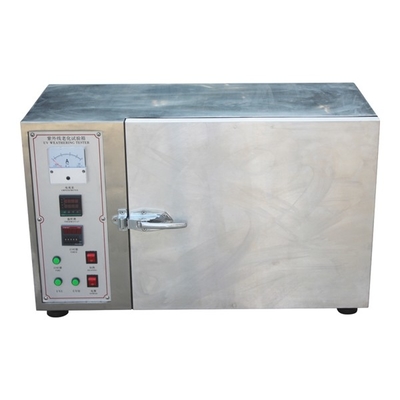

UV Aging Test Chamber With Temperature Control Function
The uv aging chamber simulates the effect of sunlight exposure by fluorescent ultraviolet lamp. The tested material is placed in the light at a certain temperature for testing.The weathering effects of months or years outdoors can be reproduced in days or weeks.
1. UV aging test box contains UV irradiation and temperature control functions. Users can set the test time by themselves. The total test time is equipped with power outage maintenance function.The machine adopts 15W ultraviolet lamp tube as the light source, through simulating the ultraviolet radiation condition in the natural sunlight, carries on the accelerated weather resistance test to the material, obtains the weather resistance result of the material.The effective service life of the lamp tube can be about 1500 hours.
2, the company's unique structure design, beautiful and generous, more convenient for users to operate.
3, the box is made of stainless steel, durable.
Conditions of use
The machine should be placed in an indoor environment with ≦35℃ and ≤ 85%R.H;Please install AC220V/5A or above power supply, in order to ensure the safety of operators, confirm the ground wire safety grounding.
Main technical parameters
|Studio size||W 400×D280×H250 (mm)|
|Light source||15W UV-B UV two|
|Center distance between tubes||150mm|
|Temperature range||Up to 60℃|
|Timing device||Maximum timing 9999H|
|Operating environment||≦35℃, 40% ~ 85%R.H.|
