300g Life Testing Apparatus

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-5617
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Test Station: Four(working Simultaneously) Counter: 0~99999999 Times
Test Stroke: 0~60mm (manual Adjustable) Load Weight: 50,100,200,300,500g
Test Speed: 5~60 Times/min Size: 500*400*550mm
Test Rod Fixing Device Adjustable Range: 0~180mm Delivery Time: In Stock
High Light:

300g Zipper Fatigue Tester


25kg zipper tester experiments


500g Button Life Tester

Product Description

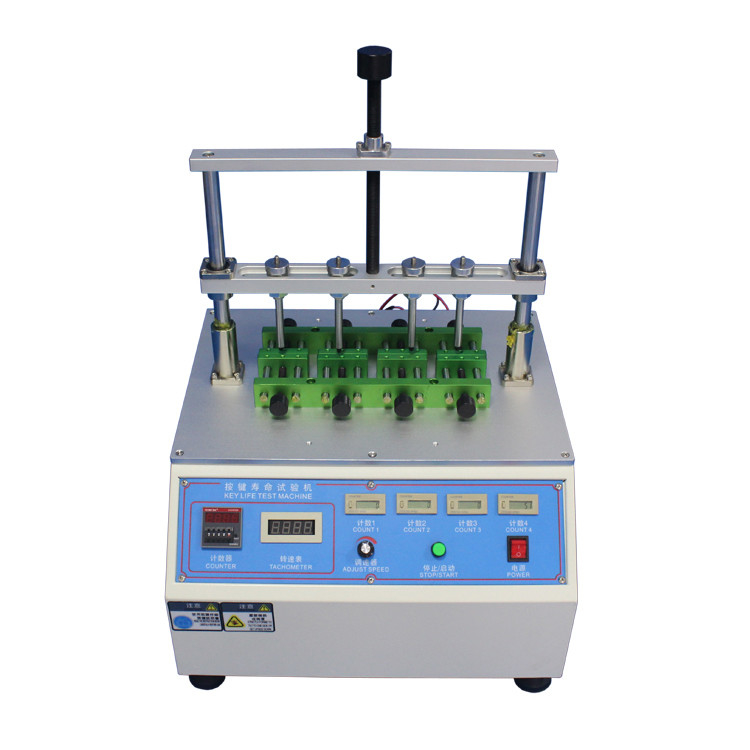

High Quality Four Station Button Life Testing Apparatus


Product introduction:
Button life testing machine is suitable for mobile phones, computers, electronic dictionaries, Bluetooth headsets, car players, remote control buttons, vehicle alarms, fax machine buttons, MP5, MP4, MP3, button switches, touch switches, membrane buttons, rubber Keys, silicone keys and other keys are used for life testing. This machine is to put the product in the test position of the corresponding station, and the key test bar simulates the life test of the product under a certain test load, speed, stroke, and number of times.



Product parameters:


test station 4 (at the same time)
load weight 50,100,200,300,500g four (optional)
test number counter 0~99999999 times (can be preset, LCD display)
test conduction number counter 0 ~ 999999 times (four stations conduction automatic counting, disconnect automatically stop count)
test speed 5 ~ 60 beats / min (knob adjustable, LCD display)
test stroke 0 ~ 60mm (manual adjustable)
the test fixture conventional clamping range 60 × 70mm (manual adjustable)
test rod fixed device adjustable range 0~180mm
Overall dimensions (L×W×H) 500×400×550mm
machine weight 25kg
the working power AC220V, 50HZ


300g Life Testing Apparatus 0

300g Life Testing Apparatus 1

300g Life Testing Apparatus 2
