Application: | Zipper Life Tester | Standard: | CNS-1083,QB/T2171~2173 |
---|---|---|---|
Reciprocating Stroke: | 75mm | Warranty: | 1 Year |
Weight: | About 50kg | Motor: | 1/4HP |
Counter: | LCD, 0-999,999 | Transverse Clamping Device Width: | 25mm |
Highlight: | 25mm Zipper Fatigue Tester,3A Fatigue testing machine,35KG Fatigue testing equipment |

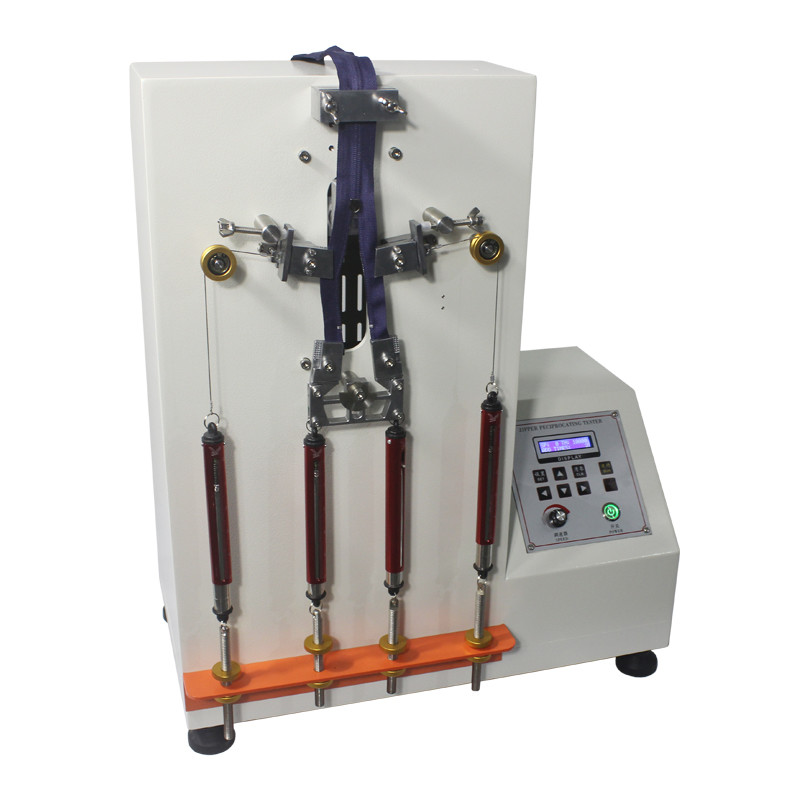

Reliable And Good Zipper Reciprocating Fatigue Testing Machine Life Testing Apparatus
Application :
This machine applies to test the reciprocating pulling strength of zipper in vertical and lateral tension, when doing testing, the machine is pulling the zip slider by constant speed at 30 times per minute.
Standard:
CNS-1083,QB/T2171-2173
Specification:
Displacement | 75mm |
Motor | 1/4HP |
Counter | LCD, 0-999,999 |
Machine Size | 280*550*660mm |
Weight | 35KG |
Power | 1, AC220V, 3A |
Transverse clamping device width | 25mm |
Total weight of clamping device | 0.28-0.34kg |
Distance between two device | 6.35mm |
Opening Angle of sample | 60° |
Interdigitation angle of sample | 30° |
