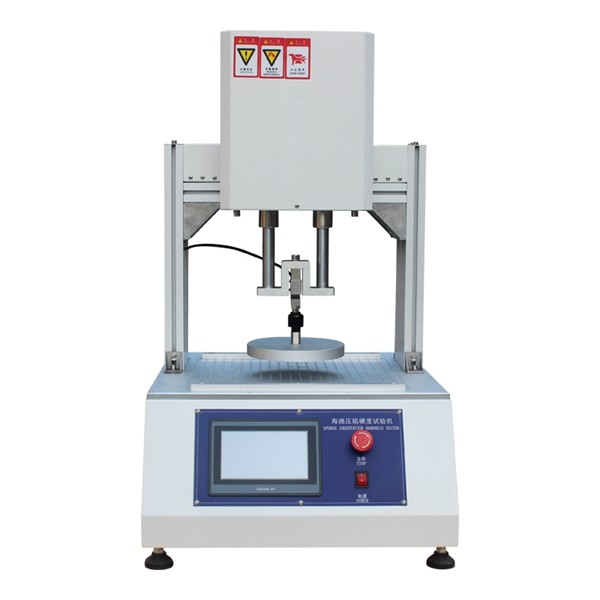

200kg 2.5A Sponge Foam Compression Hardness Tester

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-3011
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Control Mode: Touch Screen Control Induction Mode: Precision Load Element
Capacity: 200kg Up Pressure Plate: Diameter 200 Mm, Bottom Fillet R1mm
Platform: 420×420 Mm Maximum Travel: 200mm
Test Speed: 100±20mm/min Warranty: 1 Year
High Light:

2.5A Sponge Force Testing Instruments

,

200kg Force Value Test Machine

,

200 mm Force Testing Instruments


Product Description

Sponge Foam Compression Hardness Tester Force Value Test Machine



This machine is used to determine the concave hardness of porous elastic material. The foam samples of polyurethane sponge can be tested according to the national standard, and the compressive hardness of such materials as sponge and foam can be accurately measured. It can also be used to measure the compression hardness of seat foam (such as backrest, cushion foam, etc.)



PRINCIPLES:



When the sponge foam compression stress test places the specimen between the upper and lower pressure plates, and the upper pressure plate compresses the specimen of a certain size down at a specified speed to the concavity specified in the A method (B method, C method) required by the national standard, the load element on the specimen will feedback the induced pressure to the controller for processing and display, thus measuring the compression hardness of the specimen such as sponge and foam.



Standard GB/T 18941,GB/T 12825,ISO 3385



This machine is used to determine the concave hardness of porous elastic material. The foam samples of polyurethane sponge can be tested according to the national standard, and the compressive hardness of such materials as sponge and foam can be accurately measured. It can also be used to measure the compression hardness of seat foam (such as backrest, cushion foam, etc.).





Functional characteristics


1. automatic zeroing: the system automatically clears after the computer receives the test start instruction.
2. automatic return: after the specimen breaks, it automatically returns to the initial position.
3. automatic shift: according to the size of the load, different gear can be switched to ensure the measurement accuracy.
4. change speed: this machine can change the test speed arbitrarily according to different samples.
5. indication check: the system can realize accurate calibration of force value.
6. control method: according to the test needs, the test force, test speed, displacement, strain and other test methods can be selected.
7. one machine multi-purpose: equipped with different specifications of sensors, can achieve one machine multi-purpose.
8. curve traversal: after the test is completed, the force value and deformation data of the test curve point by point can be found arbitrarily by mouse and analyzed.
9. display: data and curve test process dynamic display.
10. Results: Test results are accessible and data curves are analysed.
11. Limitations: programmed and mechanical.
12. Overload: Automatic shutdown when the load exceeds the rating.





IV. Technical parameters



1. control mode: touch screen control;
2. induction mode: precision load element;
3. capacity :200 kg;
4. unit switching: Kg,N,LB;
5. up pressure plate: diameter 200 mm, bottom fillet R1mm;
6. platform :420×420 mm, breathable hole diameter 6 mm, spacing 20 mm;
Maximum 7. trip :200 mm;
8. test speed :100±20 mm/min;
9. power source: servo motor;
10. Transmission mode: precision ball screw;
11. Power supply: single phase ,220 V,50Hz/60Hz,2.5A;
12. Weight :160 kg;
