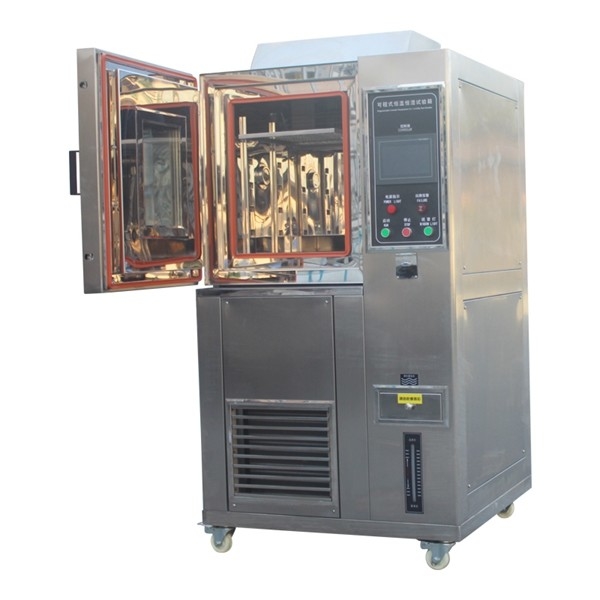

150L High Low Temperature Test Chamber

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-80L
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Detail Information
Temperature Range: -40 ℃ ~ 150 ℃ Is Available On Request Humidity Range: 20% To 98% RH +/- 0.5%
Working Environment Temperature: 5 ℃ -35 ℃ Heating Rate: 4.0 ℃/ Min
Cooling Rate: 1.2 ℃/ Min Thermal Insulation Material: Polyurethane Foam (glass Wool)
Shell Material: SUS304 Stainless Steel Temperature Fluctuation: ≤0.5°C
High Light:

SUS304 temperature cycling chamber


80L high low temperature chamber


150L thermal cycling chamber

Product Description

High Quality Temperature And Humidity Test Chamber Programmable High And Low Temperature Test Chamber Price



Application :

Temperature And Humidity Testing Machine has conditioning system that be able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing.


It is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.


Specification :

Model ASR-80L
Inner size: WHD(cm) 40*50*40 50*60*50 60*75*50 60*85*80 100*100*80 100*100*100
External size: WHD(cm) 105*165*98 105*175*108 115*190*108 135*200*115 155*215*135 155*215*155
Temperature range (Low:A:+25℃; B:0℃;C:-20℃; D:-40℃;E:-60℃;F:-70℃) (High:+100℃/+150℃)
Humidity range 20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)
Temp analytic accuracy/
Temperature Fluctuation ±0.5℃
Humidity analytic accuracy/ Humidity control accuracy ±0.1%;±2.5%
Heat; cooling time Heat up about 4.0°C/min ; Cooling about 1.0°C/min
Inner and outer materials

SUS#304 Stainless steel for inner chamber ;

Carton Advanced cold plate nano paint for outer

Insulation materials

Resistant to high temp ,high density,formate

chlorine,ethyl acetum foam insulation materials

Cooling system

Air cooling/single segment compressor(-40°C) ,

air and water double segment compressor(-50°C~-70°C)

Protection devices

Fuse switch, compressor overload switch, refrigerant high and low pressure protection

switch,super humidity over temperature protection switch,fuse,failure warning system

Parts Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4
Compressor Original France“Tecumseh”brand

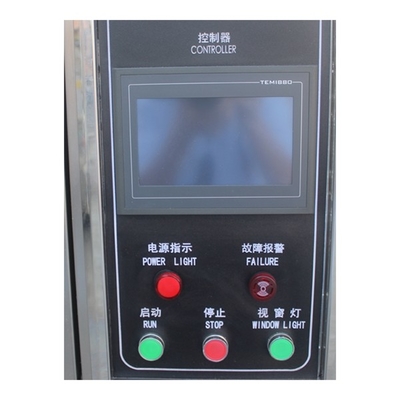

Controller TEMI South Korea
Power AC220V 50/60Hz & 1, AC380V 50/60Hz 3
weight (kg) 150 220 270 320 450 580
