0.1 N Paper Tube Compressive Strength Test Instrument

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-8509
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Capacity Selection: 500 Kg Test Speed: 10 ~ 150 Mm/min
Power Resolution: 1/200000 Display Resolution: 0.1 N
Display Mode: LCD Display Test Space: 150*150 Mm
Speed Input Methods: Revolving Units Switch: Kgf, Lbf, N.( Optional)
High Light:

200mm Paper Tube Pressure Tester


0.1 N compressive strength test apparatus


500kg compressive strength testing machine

Product Description

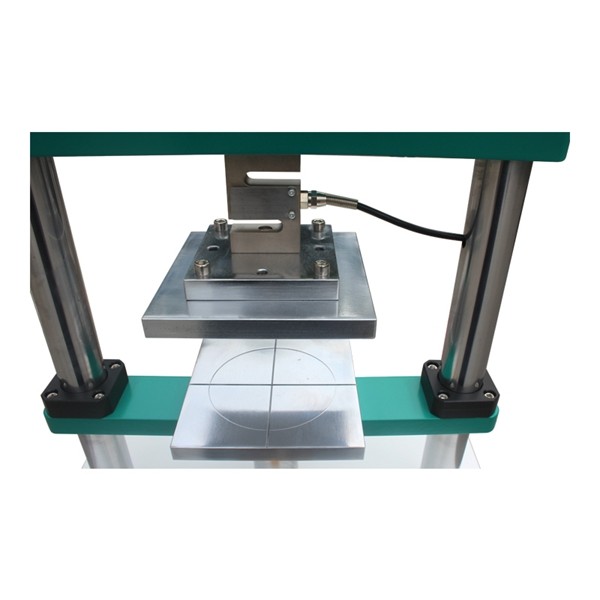

Paper Tube Pressure Tester Paper Tube Compressive Strength Test Instrument


It is suitable for paper tubes with an outer diameter of 200mm. It is also called paper tube pressure testing machine and paper tube compression testing machine. It is the basic instrument for testing the pressure resistance of paper tubes.

High-precision sensors and high-speed processing chip design are adopted to ensure sampling accuracy.


Product Features:

1. After the test is completed, it has the function of automatic return, automatically judges the crushing force and automatically saves the test data;

2. Adjustable speed, full Chinese LCD operation interface, a variety of units to choose from;

3. Equipped with a micro printer, it can directly print the test results.



BB/T 0032

ISO 11093-9

GB/T 22906.9

GB/T 27591-2011


Technical Indicators:

Capacity selection 500 kg
Paper tube outer diameter 200 mm
Test space 200*200mm
Press plate size


Test speed 10 ~ 150 mm/min
Power Resolution 1/200000
Display resolution 0.1N
Accurate grade 1
Displacement unit mm, cm, in
Stress unit MPa, kPa, kgf/cm2, lbf/in2
Control mode microcomputer control
Display mode electronic LCD display
Software Functions Interchange of Chinese and English Languages
