Digital Compressive Strength Paper Testing Equipments

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-8503B
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Capacity: 200,500kg Units Switch: Kgf, Lbf, N.( Optional)
Test Space: 150*150 Mm Display Resolution: 0.1 N
Display Mode: LCD Display Accuracy: ±0.5 %
Testing Speed: 10 ~ 80mm/min Resolution: 1/20000
High Light:

500kg Paper Core Strength Tester

,

0.1 N Compressive Strength Tester

,

80mm min paper testing machine


Product Description

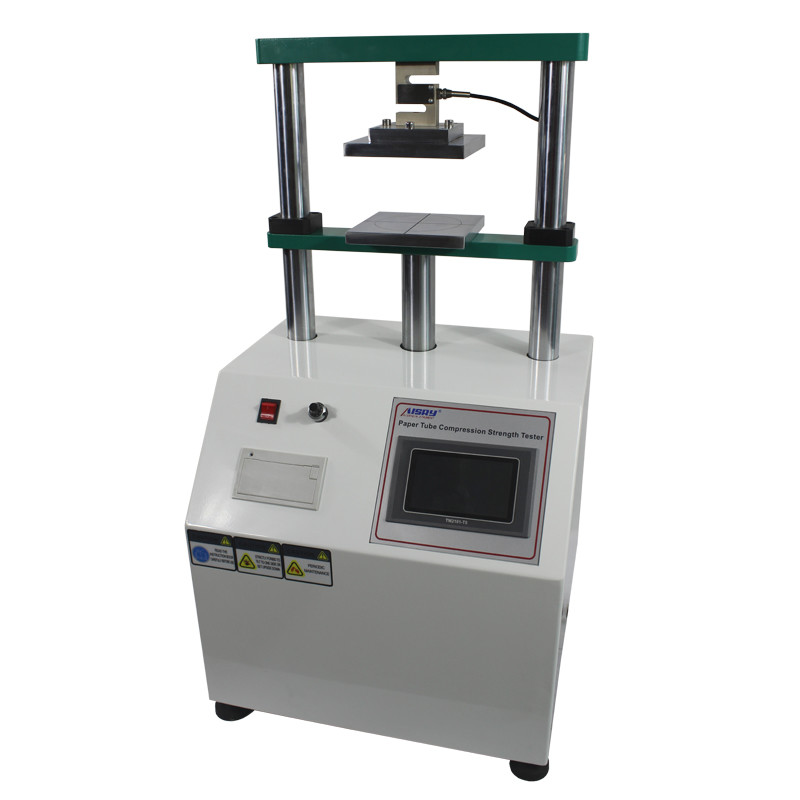

Digital Paper Core Tube Compressive Strength Test Machine



Application :

This machine is the ideal test auxiliary appliance for paper, packaging, scientific,research, quality and other industries and department.it is used to test tube, yarn tape, paper tins, synthesis of tins, horizontal compressive strength. Applicable to paper tubes with an outer diameter of 200mm, also known as paper tube pressure tester, paper tube compression tester, is the basic instrument for paper tube compression resistance test, using high-precision sensors, high-speed processing chip design to ensure sampling accuracy .







Specification :

Model ASR-8503B
Capacity 200,500,1000kg
Induction Force sensors
Displayer ZL-2000
Resolution 1/20000
Accuracy ± 0.5 %
Units switch Kgf, Lbf, N.( Optional)
Testing speed 10 ~ 200 mm/min
Speed input methods Revolving
The pressure plate area 30*30 cm
The pressure plate spacing 30 cm Or designated
Dimension 85×65×80cm
Weight 130 kg
Power AC220V 50Hz (According to national or specified)



Digital Compressive Strength Paper Testing Equipments 0



Digital Compressive Strength Paper Testing Equipments 1

Digital Compressive Strength Paper Testing Equipments 2
