Safety Helmet 1000mm Drop Height Impact Test Machine

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-1056
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Impact Drop Weight: 5-5.01kg Load Cell: Range 0-20kn
Drop Weight Height: 1000mm Power Supply: AC220 V, 50 Hz
Full Range: ±2.0% Accuracy: ± 0.02%
Puncture Cone: 3-3.05kg Size: 600*500*1800mm
High Light:

1000mm Impact Test Machine


GB/T 2812 Impact Test Machine


GB/T 2811 Impact Test Apparatus

Product Description

Safety Helmet Drop Impact Test Machine Safety Helmet Impact Resistance Puncture Test Apparatus



Brief introduction:

According to new national standard GB/T 2812-2006 safety helmet helmet test method development, used to detect the helmet impact resistance performance test (hit) prevention and safety helmet puncture performance testing, a tester contains two kinds of test functions, widely used in the special labor protection articles, construction project supervision and inspection, construction science research institute testing station, electric power department and helmet production enterprises.

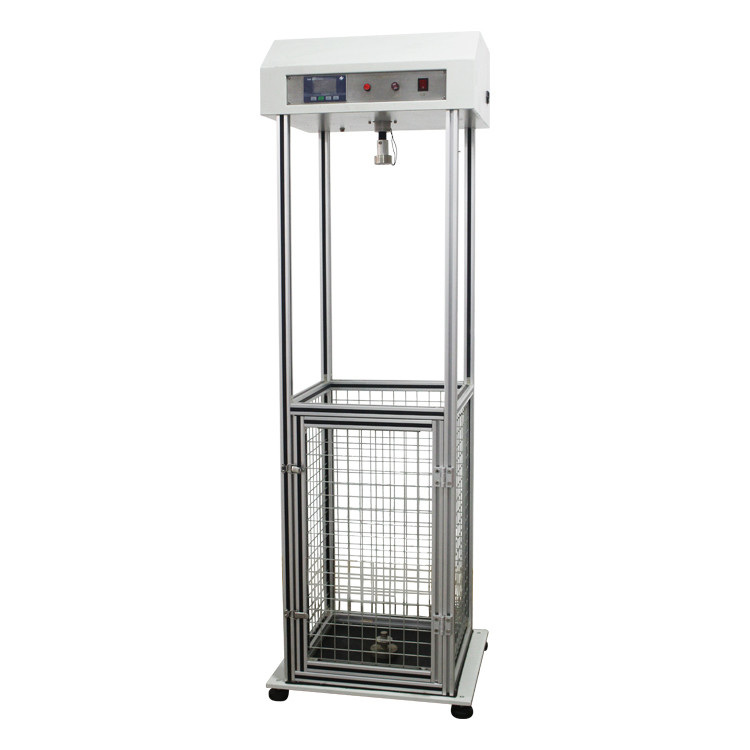

Safety Helmet 1000mm Drop Height Impact Test Machine 0


Detailed Parameters:

Impact drop hammer weight is 5 -- 5.01kg, hammer head is hemispherical, diameter is 96mm, material is 45# steel
puncture cone the mass is 3-3.05 kg, the puncture part has a cone Angle of 60°, the tip diameter is 1mm, the length is 40mm, the maximum diameter is 28mm, and the hardness is HRC45
drop hammer height 1000mm, drop hammer height can be adjusted
force measurement system dynamic force value sensor is adopted, measuring range is 0-20kn, the corresponding minimum frequency is 5kHz, the full range is ±2.0%, accurate to 1N
base impact strength, can be firmly installed force sensor
puncture alarm device when the puncture cone touches the head mold, the device will emit siren alarm and flash light
equipped with 1# and 2# aluminum-silicon alloy special head mold each (in accordance with the provisions in appendix A of GB/T 2812-2006)

the release point of the electromagnet can be adjusted according to the need

Platform: control suspension and release impact drop hammer and puncture drop hammer by electromagnet automatic suction

LED digital display, accurate to 1N, automatic saving maximum force value (optional touch screen control, display force curve)
special guidance system can automatically guide the impact point to ensure that the impact position is the center of the helmet


Safety Helmet 1000mm Drop Height Impact Test Machine 1

Standard For:GB/T 2812-2006 GB/T 2811-2007
