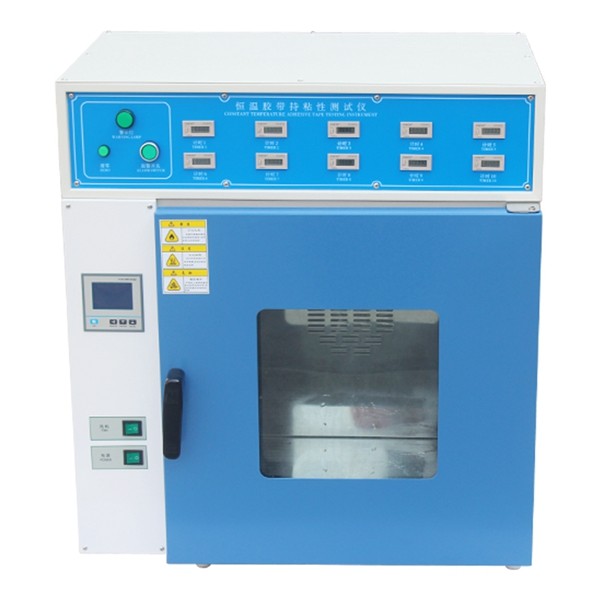

GB 4851 Tape Adhesive Test Machine

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-5604B
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Standard Roller: 2000 G±50 G Weight: 105KG
Temperature: 0.1℃ Test Plate: 50(L) Mm ×50(B) Mm And 1.5(D) Mm
Number Of Test Group: 10 Groups Temperature Control: Normal Temperature~200℃
Warranty: 1 Year
High Light:

GB 4851 Adhesive Tape Strength Tester

,

2000g Adhesive Tape Peel Test Machine

,

105KG Tape Adhesion Tester


Product Description

Tape Adhesive Test Machine Constant Temperature Holding Force Tester



Test principle:

Test board with adhesive tape vertically hang on the test rack, and hang stipulate weight of weights at end, arrording to the displacement of the sample after a certain time or the time of complete departure of the sample To test the ability of adhesive specimen to resist pulling.



Design Standard:
1. GB 4851 pressure sensitive adhesive tape holds the viscosity test method
2. JIS Z0237 pressure sensitive adhesive tape and pressure sensitive adhesive sheet test method
3. ASTM D3654 pressure sensitive band shear viscosity test method



Specification :

Number of test group: 10 groups
Standard roller: 2000g±50g
Weights: 1000g±10g(Contains the load board weight)
Test plate size 50(L)mm×50(W)mm×1.5(D)mm
Auto-timer: 0~9999H,59Min,59sec Switchable
Temperature Control: Normal Temperature~200℃
Temperature Display: 0.1 ℃
Heating Mode: Heated air circulation
Weight: 105KG
Size: 97*55*110cm





Product Usage



Using the inclined surface rolling ball method, the initial adhesion of the sample is tested by the effect of the adhesive tape, label and other products on the steel ball when the steel ball and the viscous surface of the test sample are in short-term contact with a small pressure.



This machine can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons,thread, spring, wood,medicine packaging materials, tapes etc.
