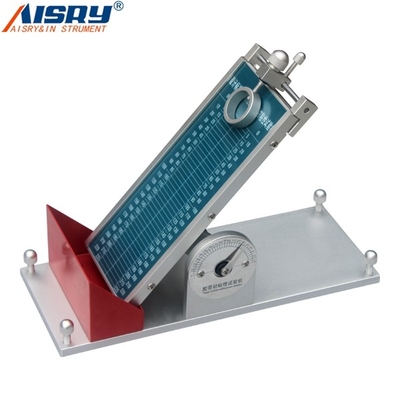

120mm Tape Adhesion Tester

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-5603
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Application: Adhesive Tape Tester Power: Manually
Standard: CNS.4158,GB/T,IEC68 Function: Adhesive Tape Test Machine
Net Weight: About 6kg Size: 320*140*180mm
Warranty: 1 Year Model Number: ASR-5603
High Light:

80mm Adhesive Tape test equipment


6kg Adhesive Tape test machine


120mm Adhesive Tape Apparatus

Product Description

0~60 Degree Adhesive Tape Initial Adhesion Device Apparatus


Product use:

Using the inclined ball method, when the short contact between the steel ball and the adhesive surface of the test specimen occurs with a slight pressure, the adhesion of the adhesive tape, label and other products to the steel ball is used to test the initial viscosity of the sample.


National Standard:

GB 4852, JIS Z0237


Operating Instructions Test Preparation:

1. Through the level meter, adjust the position around the feet to adjust the platform to a horizontal state

2. Rotate the five-star nut to adjust the angle of the test plane to the desired test angle

3. The test tape attached to the test plane

4. Select the test ball, take the ball from the largest number, in order to make it free to roll down, record stuck in the test piece to reach more than 5 seconds of the ball number. As the product adhesive tape initial viscosity value.

5 test is completed, remove the test sample, clean the machine.


Technical Parameters:

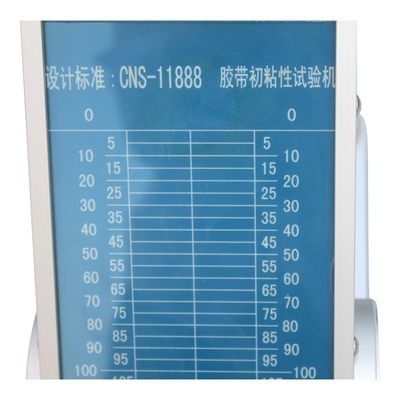

Adjustable tilt angle: 0-60°
Table width: 120mm
Width of Test Area: 80mm
Standard steel ball: 1/32 inch to 1 inch
Overall dimensions: 320(L)mm×140(B)mm×180(H)mm
Heavy weight: 6kg
