100cpm 90 Degree Bending Leather Testing Machine For Shoe

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-7121
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Application: Rubber Or Leather Sole Folding Resistance Bending Tester Bending Angle: 1°~90°
Warranty: 1 Year Power: AC220V 50Hz
Speed: 100±5cpm Test Sample Quantity: 6
Timer: 6 Digital Display Weight: 75kg
High Light:

100cpm Shoe Bending Testing Machine

,

ISO ROSS folding flexing test equipment

,

75kg Footwear Ross Folding Tester


Product Description

Kinds Material Testing Machine Flex Test Of Shoe PU ROSS Folding Test Machine



Application :

This machine is used for bending resistance test for finished shoes. Shoes and soles is twisted as a certain angle during a certain time, observe the shoes and sole damage, or check the crack location and degree, so as to improve quality. The machine can set test times and stop working at the set value.



Sample requirement:

1. Sample must be the finished shoes made within 48 hours, no obvious defects.

2. Each group of sample should not less than 2 pairs.





Specification :

Model ASR-7121
Test speed 100±5 rpm
Material stainless steel or cold rolled sheet with powder coated
Bending angle 0~90 degrees
Test sample quantity 6 pcs
Application shoes
Timer 6 digital display
Machine size 600Wx600Dx400H mm
Weight

75kg

Power supply AC 1 phase 220V 50/60Hz

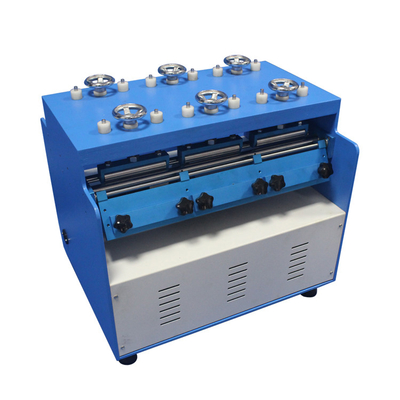

100cpm 90 Degree Bending Leather Testing Machine For Shoe 0

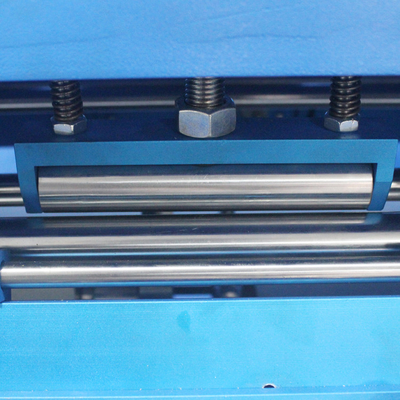

100cpm 90 Degree Bending Leather Testing Machine For Shoe 1

100cpm 90 Degree Bending Leather Testing Machine For Shoe 2
