| Place of Origin: | China |
|---|---|
| Brand Name: | AISRY |
| Certification: | ISO |
| Model Number: | ASR-5612 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Specimens: | ED 108mm, ID 8mm | Machine Size: | 30*43*30cm |
|---|---|---|---|
| Speed: | 60~70rpm Or Designated | Load: | 250g, 500g, 1000g |
| Counter: | 0-999,999 Automatic Shutdown | Wheel Center Distance: | 63.5mm |
| Abrasion Wheel: | 2"(max.45mm), 1/2"(W) | Wheel And Specimens Disk Center Space: | 37~38mm |
| High Light: | Leather Taber Abrasion Tester,Rubber Taber Abrasion Tester,DIN-53754 taber abrasion machine |
||

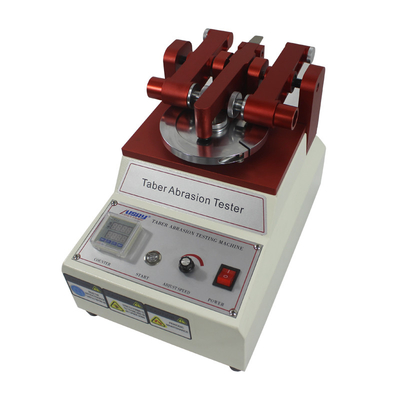

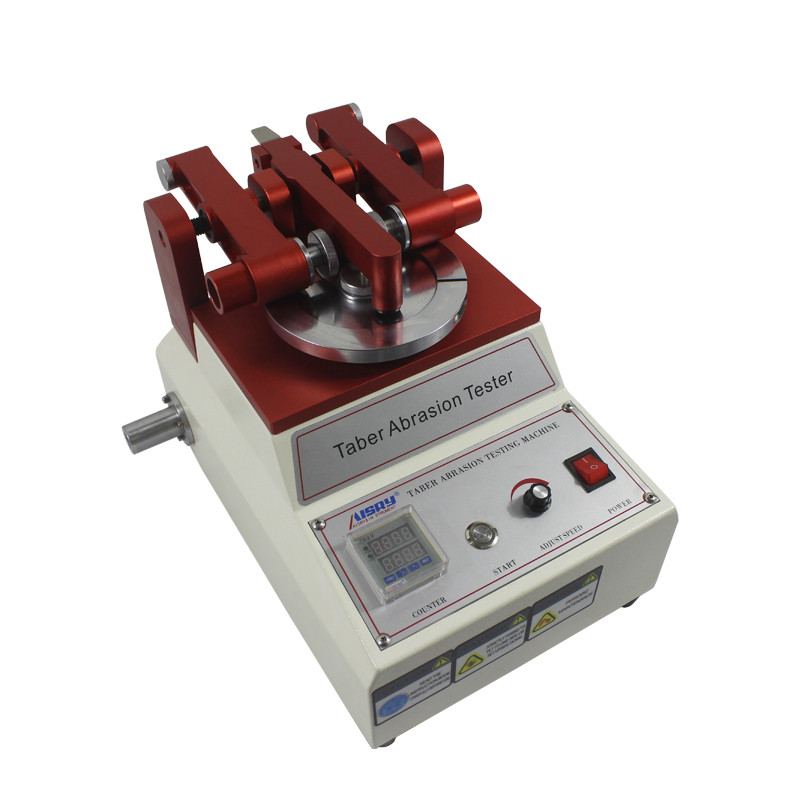

Rubber Leather Taber Abrasion Tester
Rubber Taber Abrasion Tester applied to do the test of wear-resistant in skin, leather, cloth, paint, paper,
flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen,
and then using the regulated models of grinding wheel with loading weight to be abrased, Specimen to be
removed after rotation to reach a certain number, observe the condition of the specimen or compare the
weight with the previous materials, For the choice of grinding wheel models: H18, H22, CS17, S32, S33.
Corresponding standard:
Din53754 Leather Rubber Taber Abrasion Tester meet DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D1044, D3884, ISO-5470
Applicable industry:
Rubber Taber Abrasion Tester used in testing the performance of leather products, such as suitcases,
carpets, cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin, furniture, and scientific research labs; commodity inspection, arbitration, and technical supervision department.
Testing reference:
| paint | brick | plywood | plastic |
|
CS10 CS17 |
CS17 |
S32 S33 |
CS17 H18H22 |
5. Machine Specifications:
| Model | ASR-5612 |
| Specimen | 120 × 6.5 × 3mm |
| Load | 250g, 500g, 1000g |
| Counter | 6 digit electronic display, automatic shut down |
| Testing Disk Speed | 0-70 Adjustable |
| Machine Dimensions | 30 × 43 × 30cm |
| Machine Weight | 30kg |
| Attachment |
a wrench, a group of grinding wheel, Fama (250g, 500g, 750g) each 2 pcs. Vacuum cleaner 1. |
| Power | AC220V / 50HZ |
