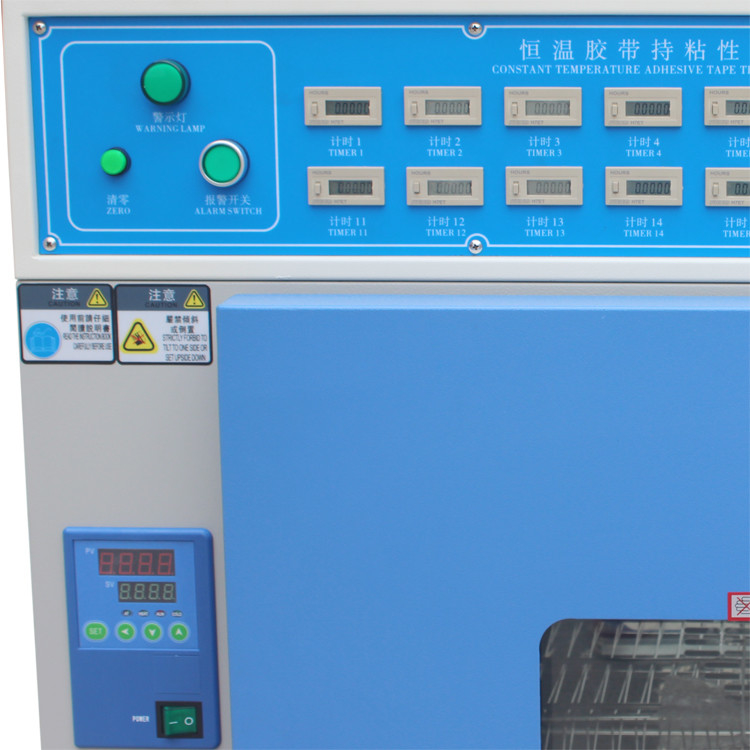

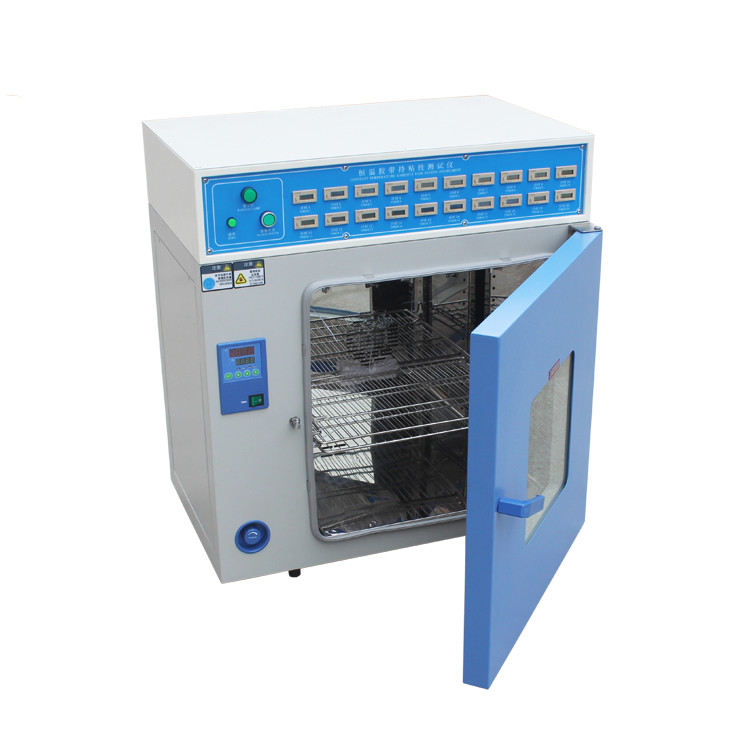

High Temperature 2000g 20 Groups Tape Adhesion Tester

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-5604C
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Application: Tape Retention Test Machine Size: 97*55*110cm
Weight: 105KG Temperature Control: Normal Temperature~200℃
Warranty: 1 Year Power Supply: AC220V, 15A
Number Of Test Group: 20 Groups Standard Roller: 2000g±50g
High Light:

2000g Adhesive Tape Tester

,

15A Tape Retention Test Machine

,

200kg Tape Retention Tester


Product Description

High Temperature Adhesive Tape Tester



Test principle:

Test board with adhesive tape vertically hang on the test rack, and hang stipulate weight of weights at end, arrording to the displacement of the sample after a certain time or the time of complete departure of the sample To test the ability of adhesive specimen to resist pulling.



Design Standard:
1. GB 4851 pressure sensitive adhesive tape holds the viscosity test method
2. JIS Z0237 pressure sensitive adhesive tape and pressure sensitive adhesive sheet test method
3. ASTM D3654 pressure sensitive band shear viscosity test method





Specification :

Number of test group: 20groups
Standard roller: 2000g±50g
Weights: 1000g±10g(Contains the load board weight)
Test plate size 100*100*300mm
Auto-timer: 0~9999H,59Min,59sec Switchable
Temperature Control: Normal Temperature~200℃
Temperature Display: 0.1 ℃
Heating Mode: Heated air circulation
Weight: 200kg
Size: 97*55*110cm



High Temperature 2000g 20 Groups Tape Adhesion Tester 0





High Temperature 2000g 20 Groups Tape Adhesion Tester 1

High Temperature 2000g 20 Groups Tape Adhesion Tester 2
