GB T 1843 Cantilever Beam Impact Test Apparatus For Nonmetallic

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-5336
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Application: Impact Testing Machine Warranty: 1 Year
Impact Speed: 3.5m/s Blade Radius: 0.8mm
Angle Of The Blade: 750 Weight: 80kg
Blade Rake Angle: 50 Blade Back Angle: 100
High Light:

80kg Impact Testing Machine

,

GB T 1843 cantilever impact tester

,

ISO 180 Cantilever Beam Impact Tester


Product Description

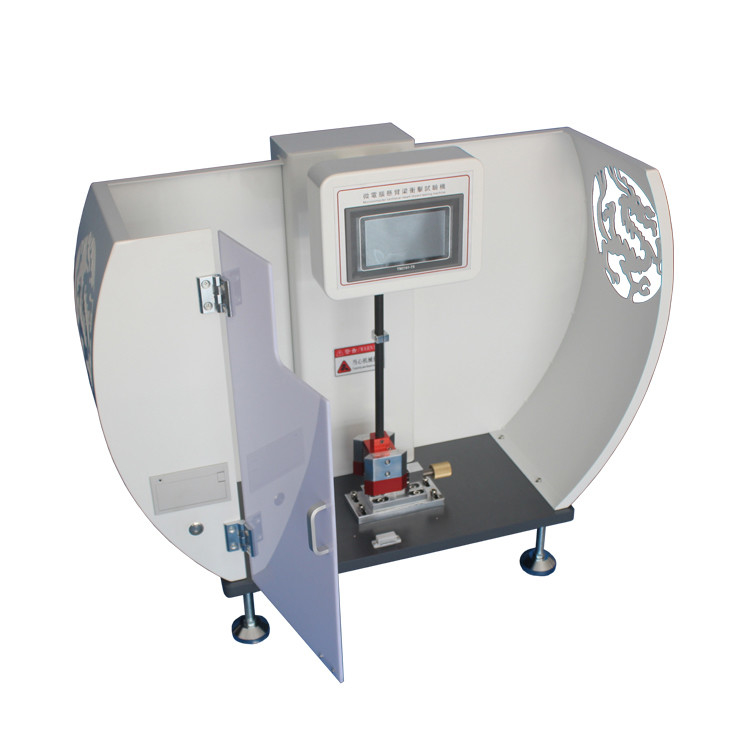

GB/T1843 Standard Cantilever Beam Impact Testing Machine For Nonmetallic Material



Application:The liquid crystal digital display cantilever impact tester is an instrument for detecting the impact resistance of non-metallic materials such as rigid plastics, nylon, hard rubber and electrical insulating materials under dynamic load. It is essential for non-metallic materials manufacturers and quality inspection departments. Testing instruments are also indispensable test instruments for researching new materials.





Parameter:

Impact energy The cantilever beam 11J, 5.5J or maximum impact energy is specified by the user.
Pendulum pre-angle 1500
Power supply AC 220V 50Hz
Dimensions 360 × 240 × 680mm
Net weight about 80kg
Impact speed 3.5m/s
Distance from the center of the pendulum shaft to the center of the specimen

327mm



Angle of the blade



750



Blade radius



0.8mm



Blade rake angle



50



Blade back angle



100



Sample type and size

(length × width × thickness) mm3



ISO180-2000 or GB/T 1843-2008:

Type 1 sample: 80 × 10 × 4

Type 2 sample: 63.5 × 12.7 × 6.4

Type 3 sample: 63.5 × 12.7 × 3.2



GB T 1843 Cantilever Beam Impact Test Apparatus For Nonmetallic 0

GB T 1843 Cantilever Beam Impact Test Apparatus For Nonmetallic 1

GB T 1843 Cantilever Beam Impact Test Apparatus For Nonmetallic 2
