Electronic 500mm ASTM B117 270L Salt Spray Test Chamber

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-90A
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Power: Electronic Temp. Uniformity: ≤±2°C
Inner Size: 900*600*500mm Lab Volume: 270L
Temp. Precision: ±1°C Compressed Air Pressure: 1.0±0.01kgf/cm^2
Design Criteria: ASTM,CNS, JIS, K5400, Z2371 Lab Temperature: 35°C~55°C
High Light:

270L salt spray test equipment

,

600L salt fog chamber

,

270L salt spray test machine


Product Description

ASR-90A Nozzle Salt Spray Test Chamber Price



Application:

Salt fog spray corrosion test cabinet can be used for all kinds of material surface treatment, including coating, electroplating, organic and inorganic coating, anodizing, rust proof oil and preservative treatment test of its corrosion resistance, so as to establish the quality of the products.





Specifications:

Model ASR-60A ASR-90A ASR-120A ASR-200A
Standards ISO9227, CNS3627,3885,4159,7669,8886, JIS D-0201, H-8502, H-8610, K-5400, Z-2371, ISO 3768, 3769, 3770, ASTM B-117, B-268, GB-T2423, GJB 150.
Test chamber capacity (L) 108L 270L 600L 1440L



Temperature

Test chamber NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Air cylinder NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Test chamber size

LxWxD(cm)

60*45*40



90*60*50



120*100*50



200*120*60



Max volum of test liquid (L) 15 25 40 40
Volume LxWxD(cm) 107*60*118 141*88*128 190*130*140 270*150*150
Power AC220V,10A AC220V,15A AC220V,30A AC220V,30A
Spray quantity 1.0~2.0ml/80cm2/h
PH 6.5~7.2 3.0~3.2



Customize parts for Corrosion Test Chamber:

1. Inner chamber size

2. Inner chamber structure

3. PID programmable controller or PLC touch screen controller



Features:

1. LCD display and a pid controller or touch screen programmable controller.

2. Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products,strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.

3. Controller are in the same panel, the operation simple and clear.

4. Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test laboratory.

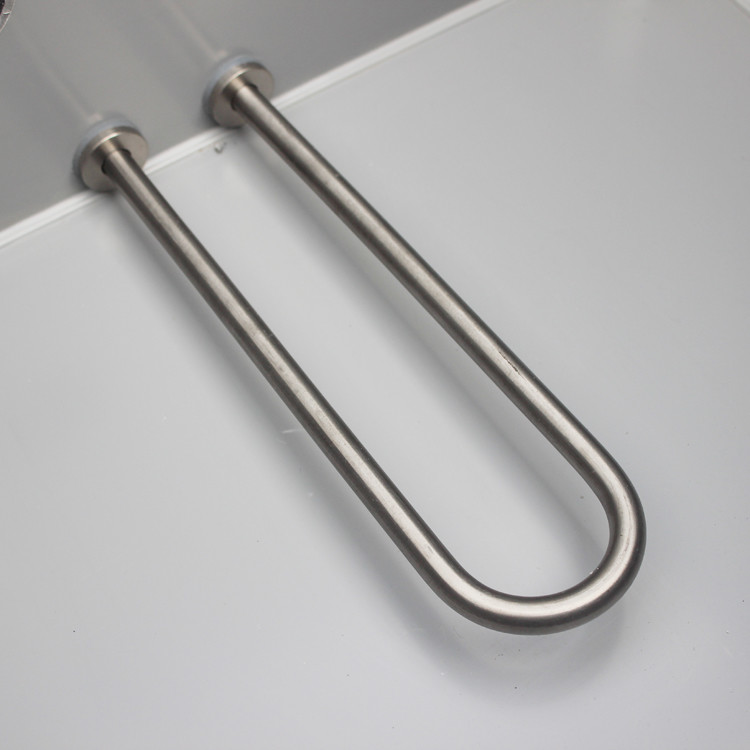

Electronic 500mm ASTM B117 270L Salt Spray Test Chamber 0


Electronic 500mm ASTM B117 270L Salt Spray Test Chamber 1
Electronic 500mm ASTM B117 270L Salt Spray Test Chamber 2
