Adhesion Tape Rolling Ball Initial Tack Ball Test Instrument

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-5603
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Application: Adhesive Tape Tester Power: Manually
Standard: CNS.4158,GB/T,IEC68 Net Weight: About 6kg
Size: 320*140*180mm Function: Adhesive Tape Test Machine
Warranty: 1 Year Adjustable Tilt Angle: 0-60°
High Light:

JIS Z0237 Adhesive Tape tester

,

IEC68 Tape Adhesion Tester

,

GB 4852 Rolling Ball Tack Tester


Product Description

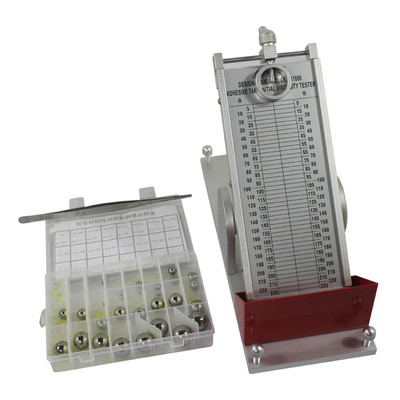

Professional Adhesion Tape Rolling Ball Method Initial Tack Ball Test Instrument



Product use:

Using the inclined ball method, when the short contact between the steel ball and the adhesive surface of the test specimen occurs with a slight pressure, the adhesion of the adhesive tape, label and other products to the steel ball is used to test the initial viscosity of the sample.



National Standard:

GB 4852, JIS Z0237

Adhesion Tape Rolling Ball Initial Tack Ball Test Instrument 0



Operating Instructions Test Preparation:

1. Through the level meter, adjust the position around the feet to adjust the platform to a horizontal state

2. Rotate the five-star nut to adjust the angle of the test plane to the desired test angle

3. The test tape attached to the test plane

4. Select the test ball, take the ball from the largest number, in order to make it free to roll down, record stuck in the test piece to reach more than 5 seconds of the ball number. As the product adhesive tape initial viscosity value.

5 test is completed, remove the test sample, clean the machine.



Adhesion Tape Rolling Ball Initial Tack Ball Test Instrument 1

Technical Parameters:

Adjustable tilt angle: 0-60°
Table width: 120mm
Width of Test Area: 80mm
Standard steel ball: 1/32 inch to 1 inch
Overall dimensions: 320(L)mm×140(B)mm×180(H)mm
Heavy weight: 6kg



Adhesion Tape Rolling Ball Initial Tack Ball Test Instrument 2
