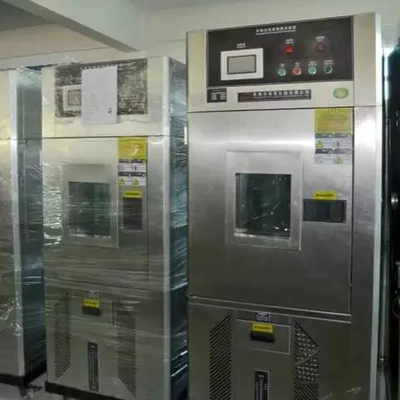

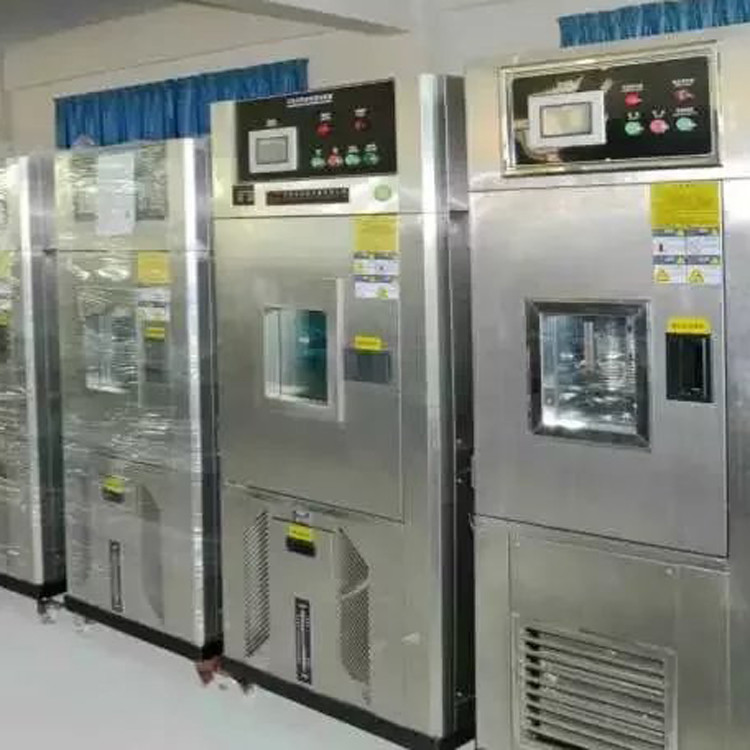

800L Temperature Humidity Test Chamber

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-80L
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Humidity Range: 20% To 98% RH +/- 0.5% Temperature Control Mode: Balance Temperature Control (BTC) Mode
Heating Rate: 4.0 ℃/ Min Thermal Insulation Material: Polyurethane Foam (glass Wool)
Temperature Range: -40 ℃ ~ 150 ℃ Is Available On Request Working Environment Temperature: 5 ℃ -35 ℃
Shell Material: Quality SUS304 Stainless Steel Temperature Fluctuation: ≤0.5°C
High Light:

1000L benchtop test chambers

,

800L benchtop stability chamber

,

SUS304 environmental control chamber


Product Description

Hot Selling Benchtop Environmental Temperature Humidity Chamber For Electronics



Application :

This machine have conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing.



It is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.



800L Temperature Humidity Test Chamber 0

Specification :

Model ASR-80L ASR-150L ASR-225L ASR-408L ASR-800L ASR-1000L
(A~F) (A~F) (A~F) (A~F) (A~F) (A~F)
Inner size: WHD(cm) 40*50*40 50*60*50 60*75*50 60*85*80 100*100*80 100*100*100
External size: WHD(cm) 105*165*98 105*175*108 115*190*108 135*200*115 155*215*135 155*215*155
Temperature range

(Low:A:+25℃; B:0℃;C:-20℃; D:-40℃;E:-60℃;F:-70℃)

(High:+100℃/+150℃)

Humidity range

20%~98% R.H.(10%~98%R.H);

(5%~98%R.His special optional condition)

Temp analytic accuracy/ 0.1℃/±2.0℃
uniformity
Temperature Fluctuation ±0.5℃

Humidity analytic accuracy

Humidity control accuracy

±0.1%;±2.5%
Heat; cooling time Heat up about 4.0°C/min ; Cooling about 1.0°C/min
Inner and outer materials SUS#304 Stainless steel for inner chamber ;
Carton Advanced cold plate nano paint for outer
Insulation materials Resistant to high temp ,high density,formate
chlorine,ethyl acetum foam insulation materials
Cooling system Air cooling/single segment compressor(-40°C) ,
air and water double segment compressor(-50°C~-70°C)
Protection devices Fuse switch, compressor overload switch, refrigerant
high and low pressure protection switch,super humidity over- temperature protection switch, fuse, failure warning system
Parts Watching window , 50mm testing hole , PL internal bulbs ,
Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4
Compressor Original France“Tecumseh”brand
Controller TEMI South Korea
Power AC220V 50/60Hz & 1, AC380V 50/60Hz 3
weight (kg) 150 220 270 320 450 580



800L Temperature Humidity Test Chamber 1

800L Temperature Humidity Test Chamber 2

800L Temperature Humidity Test Chamber 3
