Measuring Range: | 0 ~ 4 Mm | Contact Pressure: | 100 ± 10)kPa |
---|---|---|---|
Contact Area: | 200 ± 5 Mm2 | Standard: | GB451.3 |
Weight: | 5.5kg | Function: | Testing For Paper And Cardboard Thickness |
Keyword: | Thickness Tester | Warranty: | 1 Year |
High Light: | GB451.3 Paper Thickness Meter,100kPa Paper Thickness Tester,5.5kg paper thickness gauge |

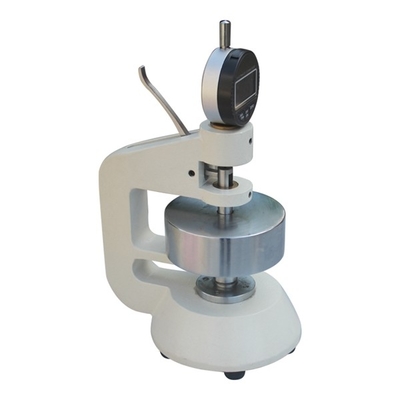

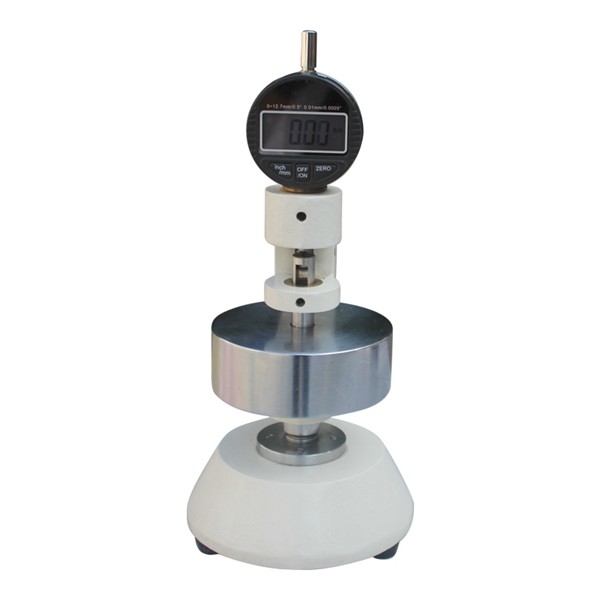

Paper Thickness Meter Corrugated Board Thickness Tester Paper Tester
The relevant provisions of the "Determination Method of Degree" can be widely applied to the thickness determination of paper, paperboard and other sheet materials.
2. Main technical characteristics
Measuring range | (0 ~ 4) mm, indexing value 0.01 mm |
Contact pressure | (100 ± 10) kPa |
Contact area | (200 ± 5) mm2 |
Parallelism of measuring surface | ≤ 0. 002 mm |
Indication error |
± 0. 0025 mm or ± 0. 5% |
Variability of indication value | ≤ 0. 0025 mm or ≤ 0. 5% |
Mass | approx. 5.5 kg |
