313nm UV Aging Test Equipment With Temperature Control

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-2133
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Studio Size: W 400×D280×H250 (mm) Light Source: 15W UV-B UV Two
Wavelength Peak: 313nm Temperature Range: Up To 60℃
Sample Rack: Adjustable Operating Environment: ≦35℃, 40% ~ 85%R.H.
Power Supply: 220V 50HZ Warranty: 1 Year
High Light:

313nm UV Aging Tester

,

15W uv weathering chamber

,

150mm UV Aging Test Chamber


Product Description

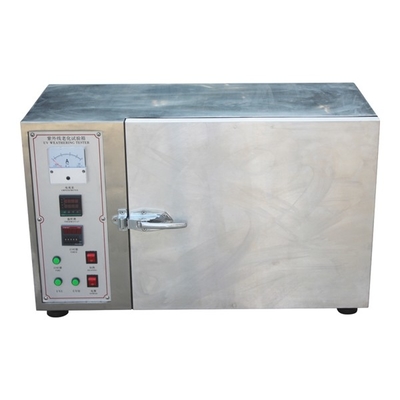

UV Aging Test Chamber With Temperature Control Function



Product overview

The uv aging chamber simulates the effect of sunlight exposure by fluorescent ultraviolet lamp. The tested material is placed in the light at a certain temperature for testing.The weathering effects of months or years outdoors can be reproduced in days or weeks.



Related introduction

1. UV aging test box contains UV irradiation and temperature control functions. Users can set the test time by themselves. The total test time is equipped with power outage maintenance function.The machine adopts 15W ultraviolet lamp tube as the light source, through simulating the ultraviolet radiation condition in the natural sunlight, carries on the accelerated weather resistance test to the material, obtains the weather resistance result of the material.The effective service life of the lamp tube can be about 1500 hours.

2, the company's unique structure design, beautiful and generous, more convenient for users to operate.

3, the box is made of stainless steel, durable.



Conditions of use

The machine should be placed in an indoor environment with ≦35℃ and ≤ 85%R.H;Please install AC220V/5A or above power supply, in order to ensure the safety of operators, confirm the ground wire safety grounding.



Main technical parameters

Technical indicators

Studio size W 400×D280×H250 (mm)
Light source 15W UV-B UV two
Wavelength peak 313nm
Center distance between tubes 150mm
Temperature range Up to 60℃
Sample rack adjustable
Timing device Maximum timing 9999H
Operating environment ≦35℃, 40% ~ 85%R.H.





313nm UV Aging Test Equipment With Temperature Control 0
