Test Speed: | 12.7 Mm/min | Test Stroke: | 90mm (or Customize) |
---|---|---|---|
Platen Dimension: | 100*100mm | Accuracy: | 0.01kg |
Capacity: | 2000N | Measuring Range: | ≤ 2 KN |
Press Platen Spacing: | 60 Mm | Resolution: | 1 N |
High Light: | 90mm Edge Crush Paper Tester,2000N Edge crush tester,60kg Paper Crush Tester |

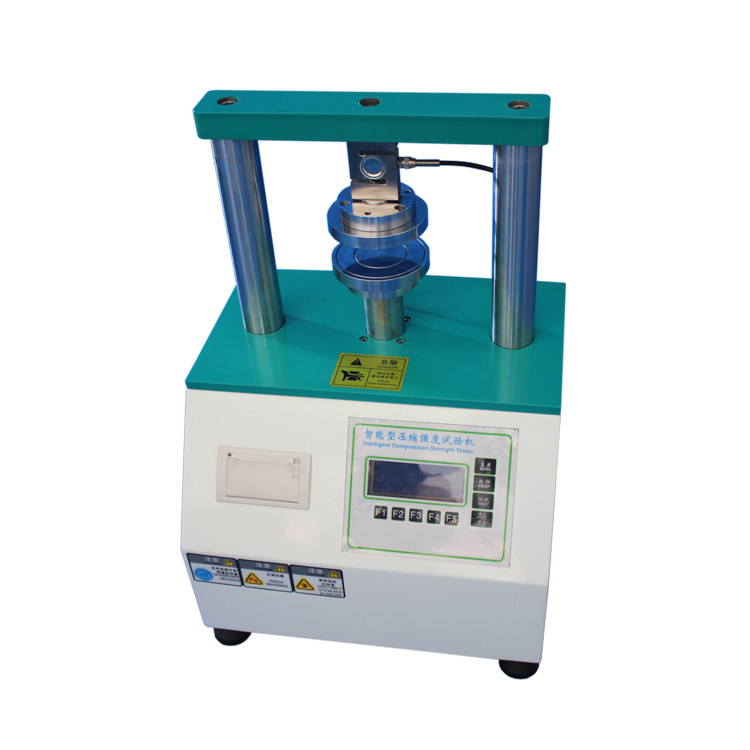

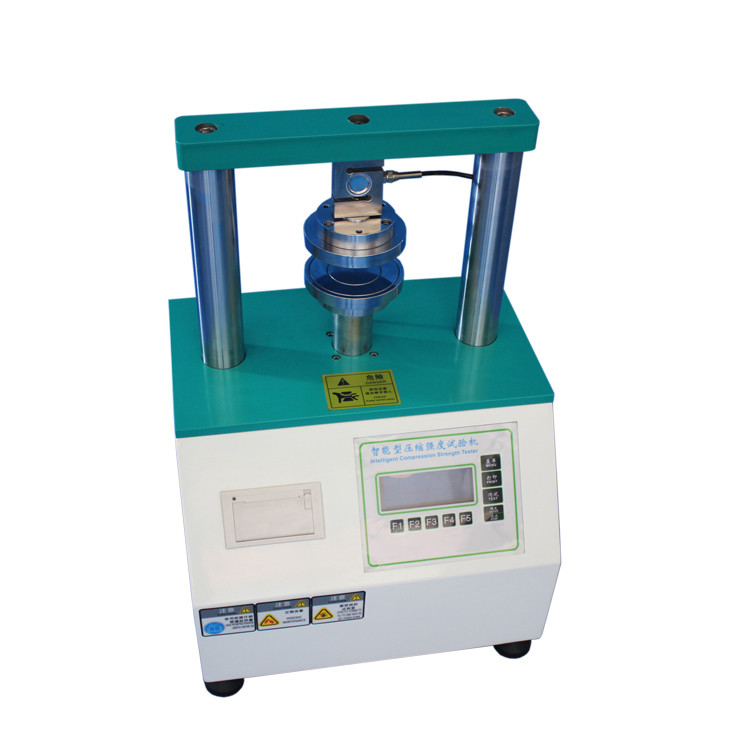

High Quality ECT Edge Crush Testing Equipment Paper Tester
Application :
This machine can be matched with various materials to do comprehensive testing, in terms of paper packaging material, a variety of test paper quality, i.e. the ring pressure (RCT), pressure (FCT), side pressure (ECT), adhesive (PAT) and general compression (CMT) and other 5 kinds of test, is a combination of a number of functions in the test one of the equipment.
Standards : TAPPI-T472 JIS-P8126
Specification :
Capacity | 2000N |
Accuracy | 0.01kg |
Platen dimension | 100×100mm(or customize by user needs) |
Test stroke | 90mm (or customize by user needs) |
Test speed | 12.7mm/min |
Return function | self-return after test finishing |
Weight | 60kg |
Power | 1φ,220V/50Hz |
Accessories :
Side pressure strength test= Ring Crush Tester+ Parallel cutting knife + Side pressure counselling piece
Ring crush strength test= Ring Crush Tester+ Ring crush sampler +Ring crush fixture
Bonding strength test = Ring Crush Tester + Hood strength stripping frame;
Flat crush strength test = Ring Crush Tester+ Flat crush sampler
