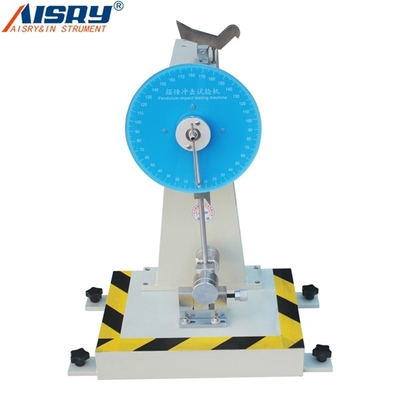

11J Izod Impact Testing Machine

Basic Information
Place of Origin: China
Brand Name: AISRY
Certification: ISO
Model Number: ASR-XJJ-11
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detail Information
Impact Velocity: 3.5 M/s Test Angle: 150°
Impact Blade Angle: 37°±l° Blade Filleted Radius: R=0.8mm±0.2mm
Capacity: 2.75J, 5.5J, 11J Jaw Radius: R=1±0.1mm
Distance From Blade To Jaw: 22±0.2mm Accuracy: 0.1%
High Light:

izod impact machine

,

Izod Impact Tester

,

izod testing machine


Product Description

 Pendulum Charpy Impact Test Machine Izod Impact Testing Equipment



Application:



Pendulum impact tester is suitable for hard plstic,reinforced,nylon,steel,ceramics,cast stone,electrical insulation material such as non-metallic, the determination of impact toughness.



Parameter:



Model ASR-XJJ-11
Pendulum energy 2.75J;5.5J;11J
Impact speed 3.5M/SET(11T/SEC)
Test angle 150°
Weight 50kg
Size 550*400*690mm
